Products > Electric ball Valve > Motorized Ball Valve > Automatic Drain Stainless Steel Valve S25-S2-C

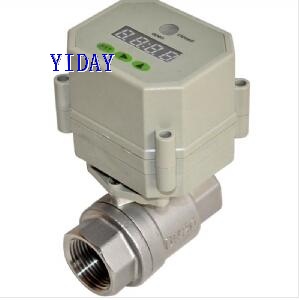

Product name : Automatic Drain Stainless Steel Valve S25-S2-C
Product No. : 2017222134937
catalogue :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Technical Parameters:





Product size NPT/BSP 1/2", NPT/BSP 3/4", NPT/BSP 1"  (Optional)
Maximum working pressure 1.5 MPa
Circulation medium Fluid, Air
Rated voltage AC/DC9-24V, AC110-230V

Working current ≤500MA
Open/close time ≤7Sec
Life time 70000 times
Valve Body material Brass,  Nickel plated Brass, 304/306 Stainless steel (Optional)
Actuator material Engineering Plastics
Sealing material EPDM & PTFE
Actuator rotation 90°
Max. torque force 4 Nm
Cable Length 0.5m,1.5m（Optional）
Environment temperature -15℃～50℃
Liquid temperature 2℃～90℃
Manual override No
Indicator Yes
Protection class IP67
Time control range

0 H : 0M :0S --99 H 59 M 59 S



Product application :



Economic Mini Motorized Ball Valve in 2 or 3 way

Timer Control Motorized Ball Valve in Grey or Black housing

Water Leak Alarm & Automatic shut off system



Auto drain & Water cooling system

Electric brewing system

Heating & Cooling HAVC system

Water cooling bleed system

Rain water harvesting

Solar heating,undefloor heating

Irrigation system

Leak detection & water shut off system

Water saving system

And some other automatic control system.....
