Products > Electric ball Valve > Motorized Ball Valve > Timer Drain Motorized Brass Valve (S15-B2-C)

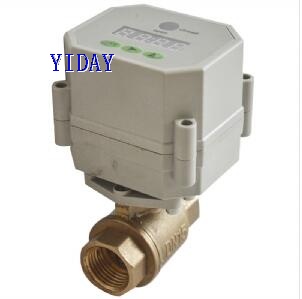

Product name : Timer Drain Motorized Brass Valve (S15-B2-C)

Product No. : 2017222134743

catalogue :

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

Technical Parameters:

Product size	NPT/BSP 1/2", NPT/BSP 3/4", NPT/BSP 1" (Optional)
Maximum working pressure	1.5 MPa
Circulation medium	Fluid, Air
Rated voltage	AC110-230V/AC/DC9-24V

Working current	≤ 500MA
Open/close time	≤ 7 Sec
Life time	70000 times
Valve Body material	Brass, Nickel plated Brass, 304/306 Stainless steel（Optional）
Actuator material	Engineering Plastics
Sealing material	EPDM & PTFE
Actuator rotation	90°
Max. torque force	4 N.m
Cable Length	0.5m, 1.5m（Optional）
Environment temperature	-15℃～50℃
Liquid temperature	2℃～90℃
Manual override	No
Indicator	Yes
Protection class	IP67
Time control range	0 H : 0M :0S --99 H 59 M 59 S
