Products > Electric ball Valve > Motorized Ball Valve > 2 way Electric Drain Valve S20-S2-C

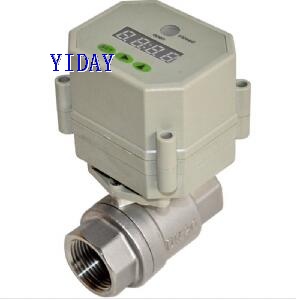

Product name : 2 way Electric Drain Valve S20-S2-C
Product No. : 2017222135113
catalogue :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 S20-S2-C 2 Way 3/4'' Electric Drain Timer Valve


Technical Parameters:



Product size NPT/BSP 1/2",  NPT/BSP 3/4",  NPT/BSP 1" (Optiona)
Maximum working pressure 1.5 MPa
Circulation medium Fluid, Air
Rated voltage AC/DC9-24V,  AC110-230V
Wiring control methods
Working current ≤500MA
Open/close time ≤7 Sec
Life time 70000 times
Valve Body material Brass,  Nickel plated Brass,  304/306 Stainless steel (Optional)
Actuator material Engineering Plastics
Sealing material EPDM & PTFE
Actuator rotation 90°
Max. torque force 4 N.M
Cable Length 0.5m,1.5m（Optional）
Environment temperature -15℃～50℃
Liquid temperature 2℃～90℃
Manual override No
Indicator Yes
Protection class IP67
Time control range

0 H : 0M :0S --99 H 59 M 59 S
