Product size
|
□NPT/BSP 1/2"' □NPT/BSP 3/4'' □NPT/BSP 1" □NPT/BSP 1 1/4'' (Optional )
|
|
Maximum working pressure
|
1.3 MPa
|
|
Circulation medium
|
Fluid, air
|
| Valve open/close time |
<=7S |
|
Rated voltage
|
□AC/DC9-24V □AC110-230V (Optional )
|
|
Keeping valve open time
|
0 H : 0M :0S --99 H 59
|
|
Keeping valve closed time
|
0 H : 0M :0S --99 H 59
|
|
Working current
|
≤500MA
|
|
Stall current setting
|
0-599mA
|
|
Life time
|
100,000 times
|
|
Valve Body material
|
□Brass □Nickel plated Brass □304 Stainless steel （Optional）
|
|
Actuator material
|
Engineering Plastics
|
|
Sealing material
|
EPDM & PTFE
|
|
Actuator rotation
|
90°
|
|
Max. torque force
|
4 Nm
|
|
Cable Length
|
0.5m,1.5m（Optional）
|
|
Environment temperature
|
-15℃～50℃
|
|
Liquid temperature
|
2℃～90℃
|
|
Manual override
|
No
|
|
Indicator
|
Yes
|
|
Protection class
|
IP67
|

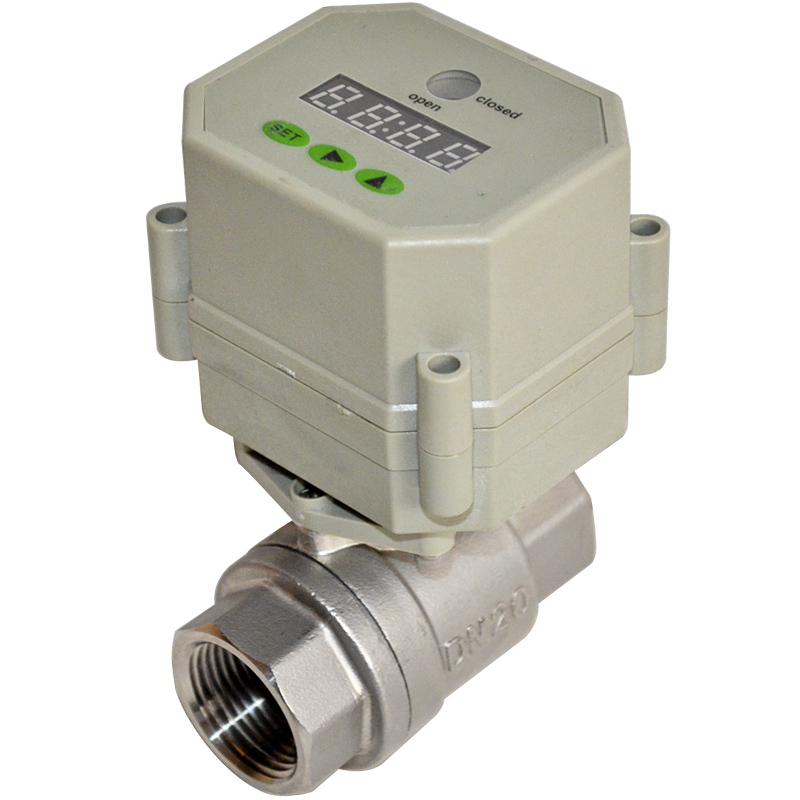

If Timer control motorized ball valves TOFINE-TCM30P can not work correctly,please confact us as I am thinking you may need other instructions,

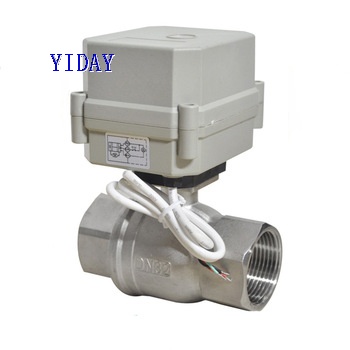

TOFINE Timer controlled motorized ball valves available on multiple options on Voltage,Size and Valve body material,
Working voltage: AC/DC9-24V or AC110-230V
Size:1/2".3/4" or 1" in BSP or NPT thread connection (Stainless steel)
Size:1/4",3/8",1/2",1" or 1-1/4" in BSP or NPT thread connection (Brass)
When ordering please tell us the Material,Size and Voltage you prefer,
* Material: Stainless,Brass or Nickle plated brass?
* Size:1/2",3/4",1" or 1-1/4"
* Voltage: AC/DC9-24V or AC110-240V?
Timer controlled valve can be widely used in automatic control system,such as ,
Air compressor
Auto drain
Irrigation
Landscaping
Water Saving system,
Air conditioning system,
Home automation system
Water automatic treatment system,
If you have some questions on how to operate the valves please contact us via Email:[email protected]. we will send you instructions,
