Products > Electric ball Valve > Motorized Ball Valve > T15-S2-B 2 Way Electric Stainless Steel Ball Valve

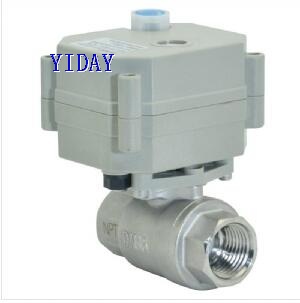

Product name : T15-S2-B 2 Way Electric Stainless Steel Ball Valve
Product No. : 201722318313
valve size :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Technical Parameters:



Product size NPT/BSP 1/2", NPT/BSP 3/4", NPT/BSP 1" (Optional)
Maximum working pressure 1.0MPa
Circulation medium Fluid, Air
Rated voltage DC5V, DC12V, DC24, DC/AC9-35V (Optional)
Wiring control methods CR2-01, CR3-01, CR3-02, CR3-03, CR3-04, CR5-01, CR7-01, CR7-02, CR7-03 (Optional)
Working current ≤500MA
Open/close time ≤5 Sec
Life time 70,000 times
Valve Body material Brass, Nickel plated Brass, 304 Stainless steel (Optional)
Actuator material Engineering Plastics
Sealing material EPDM & PTFE
Actuator rotation 90°
Max. torque force 2 Nm
Cable Length 0.5m, 1.5m (Optional)
Environment temperature -15℃~50℃
Liquid temperature 2℃~90℃
Manual override √Yes □No(Optional)
Indicator √Yes □No (Optional)
Protection class IP67

Specifications:

Model Wiring control Working voltage Max. torque
T15-S2-B CR2 01 DC5V, DC12V, DC24V 2Nm
T15-S2-B CR2 02

AC/DC9-35V

2Nm
T15-S2-B CR3 01

DC5V, DC12V, DC24V, AC/DC9-35V

2Nm
T15-S2-B CR3 02

DC9V-35V

2Nm
T15-S2-B CR3 03

DC12V, DC24V

2Nm
T15-S2-B CR3 04

DC5V, DC12V, DC24V, AC/DC9-35V

2N.m
T15-S2-B CR5 01 DC5V, DC12V, DC24V 2N.M
None CR5 02 AC/DC9-24V, AC110-230V 2N.M
T15-S2-B CR7 02

DC5V, DC12V, DC24V, AC/DC9-35V

2Nm
T15-S2-B CR7 03

DC12V, DC24V

2Nm


Dimension figure:

Wiring diagram



CR2 01 Wiring Diagram ( 2 wires control )

·RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position
·BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .
﹡Suitable Working Voltage: DC5V/DC12V/DC24V

﹡Exceeding the working voltage is forbidden



CR2 02 Wiring Diagram ( 2 wires control  Spring return  in case of the power failure)

·When SW is closed , the valve open. the actuator automatically power off after in place

·When SW is open, the valve closed, the actuator automatically power off after in place
Suitable Working Voltage: AC/DC9-35V

Exceeding the working voltage is forbidden

CR3 01 Wiring Diagram (3 wires control )

·RD & GR connect with positive, BK connect with negative

·When OPEN( RD) & SW connected , the valve open, the actuator automatically power off after in place , valve remains fully open position

·When CLOSE(GR) & SW connected, the valve closed, the actuator automatically power off after in place, valve remains fully closed position.

﹡Suitable Working Voltage: DC5V,DC12V,DC24V

﹡Exceeding the working voltage is forbidden

CR3 02 Wiring Diagram (3 wires control )

·RD connect with positive, the BK & GR connect with negative

·SW CLOSED, the valve OPEN, the actuator automatically power off after in place.

·SW OPEN, the valve CLOSED, the actuator automatically power off after in place.

﹡Suitable Working Voltage: DC9V-35V

﹡Exceeding the working voltage is forbidden



CR3 03 Wiring Diagram (3 wires control)









·RD& GR connect with positive, the BK connect with negative。

·SW CLOSED, the valve OPEN,  the actuator automatically power off after in place

·SW OPEN, the valve CLOSED,  the actuator automatically power off after in place.

﹡Suitable Working Voltage: AC/DC9-35V/AC110-230V

﹡Exceeding the working voltage is forbidden



 CR3 04 Wiring Diagram (3 wires control)

·RD & GR connected with positive, and the BK connected with negative

·When RD & SW connected, the valve closed, the actuator automatically power off after in place , remains fully closed position

·When GR & SW connected, the valve open, the actuator automatically power off after in place , remains fully open position.

﹡Suitable Working Voltage: DC5V,DC12V,DC24V,AC/DC9-35V

﹡Exceeding the working voltage is forbidden



CR5 01 Wiring diagram ( with feedback signal)

1RD connect with positive, the BK connect with negativethe valve closed, the actuator automatically power off after in place .

BK connect with positive, the RD connect with negativethe valve open, the actuator automatically power off after in place .

3.BL & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully

Suitable Working Voltage:DC12V,DC24V

Exceeding the working voltage is forbidden



CR502 Wiring Diagram ( 5 wires control – Spring return)

·When SW is closed , the valve open. the actuator automatically power off after in place

·When SW is open, the valve closed, the actuator automatically power off after in place   BL & WT are connect when the valve open fully, YW & WT are connect when the valve cl  osed fully



Suitable Working Voltage: AC/DC9-24VAC/DC110V-230V,

Exceeding the working voltage is forbidden

CR7 01 Wiring Diagram ( 7 wires control with feedback signal )

---RD connect with positive

---GR connect with SW and negative wiring

--- BK connect with negative wiring

---SW open. the valve open, and keeping fully open.

 ---SW closed. the valve closed, and keeping fully closed.

----BL & GY connect with the valve’s fully open signal wiring

--- YW & WT connect with the valve’s fully closed signal wiring.

﹡Suitable Working Voltage: DC9V-35V

﹡Exceeding the working voltage is forbidden

※ Feedback with load ability:

① The Max. off voltage: DC36V AC220V

② The Max. off current: ≦0.4A

CR7 02 Wiring Diagram ( 7 wires control with feedback signal )

1.RD & GR connect with positive, the BK connect with negative

2. When RD & SW connected, the valve open, the actuator automatically power off after the valve fully open.

3. When GR & SW connected, the valve closed, the actuator automatically power off after the valve fully closed,.

4. BL & GY connect with the valve’s fully open signal wiring

5. YW & WT connect with the valve’s fully closed signal wiring

﹡Suitable Working Voltage:DC5V,DC12V,DC24V,AC/DC9-35V

﹡Exceeding the working voltage is forbidden

※ Feedback with load ability:

① The Max. off voltage: DC36V AC220V

② The Max. off current: ≦0.4A

CR7 03 Wiring Diagram ( 7 wires control with feedback signal )











·RD& GR connect with positive, the BK connect with negative。

·SW CLOSED, the valve OPEN,  the actuator automatically power off after in place

·SW OPEN, the valve CLOSED,  the actuator automatically power off after in place.

·BL & GY connect with the valve’s fully open signal wiring

·YW & WT connect with the valve’s fully closed signal wiring.

﹡Suitable Working Voltage: DC12V,DC24V

﹡Exceeding the working voltage is forbidden
