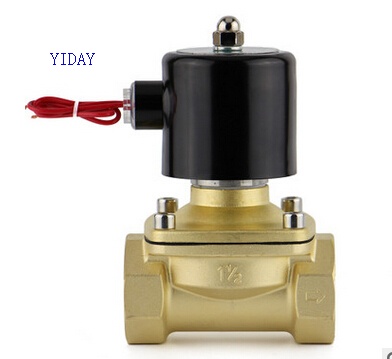

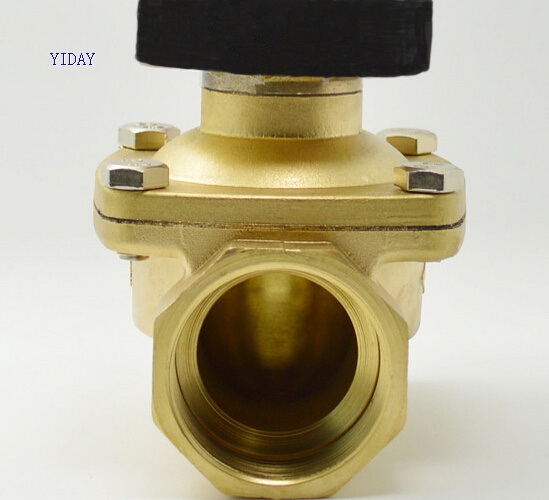

  1 1/2"  DC 24V Brass Normally Open Solenoid Valve NPT,1/8"-2" DC12V/AC110V/220V Brass/SS NPT/BSP Available

2W Series Brass/Stainless Steel Solenoid Valve Specification:

Model Number: 2W-

Body Material:Brass/Stainless Steel
Operating Temperature: NBR -10 to 80 °C
Port Size: 11/2"  or other Inch NPT Female Port
Coil Voltage: 220/240V AC

Valve Type: 2 Way Normally Open (Valve closes with energized)

Service Media: Air, Gas, Liquid, Vacuum

Operation Model: Direct Lift Diaphragm

Seal Material: NBR (Buna N) on Diaphragm and Plunger Tip

Operating Pressure: Vacuum to 90 PSI

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650A (PG11) Coil Connector with LED Indicator


 Available in:

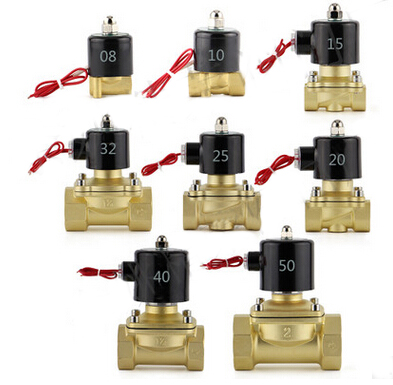

Port Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Voltages: 12v DC, 24v DC, 24v AC, 110v AC, 220v AC

Valve Body:Brass,Stainless Steel

Seal Body:NBR/  EPDM/  VITON

Description

A two way solenoid valve means that there are 2 ports in which fluid flows from/to. The Direct Acting valves will stop flow in either direction, but are still only designed to allow full flow in a single direction. Semi-Direct acting valves require assitance from fluid flow to open.

These 2W valves open/close with a 0 psi working pressure. However, while they do not require pressure from the working fluid to remaing open or remain closed, the semi-direct lift valves do require some assistance from the fluid for the initial opening/closing. Some gravity flow applications may have trouble overcoming the static friction of the seals within the valve while initially opening or closing.

General purpose 2-way direct acting and semi-direct lift acting valves. Common applications include water, oil (below 20cst), air, gas, freon, *vacuum, weak acids & weak alkali. Check chemical compatibility charts for the valve body and seals of the valves to see if they are compatible in the case of using a weak acid/base.

*Only Solenoid valves of 1" ports and smaller are able to operate with full vacuum.

Available in a body/seal material of brass/NBR or stainless steel/viton.

Brass/NBR valves are suitable for water, hot water, gas, air, non-corrosive oils and freon.

Stainless Steel/Viton valves are suitable for hot water, weak acids, weak alkali, chemical salt, oils and hydrocarbons such as *Diesel Fuel.

*Diesel fuel is compatible with Brass/NBR, however, it is known to slightly shrink NBR and with any small shrinkage of the material in the diaphragm, it can cause a solenoid vale to cease in operation. For this reason, we only warranty the stainless steel/viton valves for diesel fuel and similar applications.

Flow of the Valve

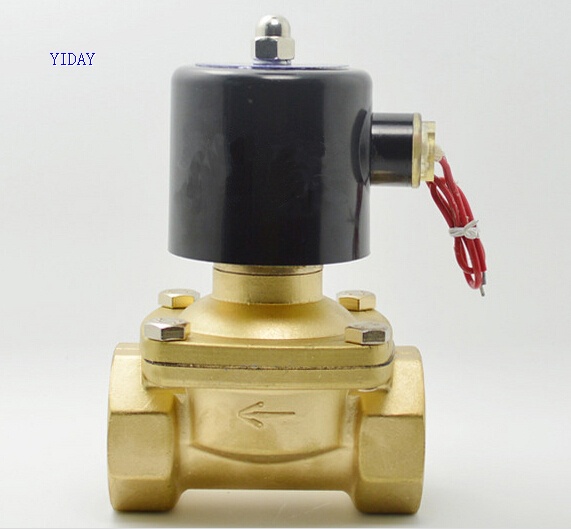

The Semi-Direct Lift valves will partially open or close from activation, and require fluid assitance to prop open or closed. They can only stop flow in one direction, which is indicated by the arrow on the body of the valve. If pressure is applied in the opposite direction, the valve will be opened and allow a slow trickle of fluid in the opposite direction. These valves should only be used for stopping flow in one direction. If preventing of backflow is required, a check valve should be placed in the line after the solenoid valve.

Direct acting valves switch on their own with no fluid assitance and can block fluid flow in both directions.

Electrical Connection

The electric coil uses a DIN connector. This connect contains wiring terminals for easy connection and a simple connect/disconnect: Simply unscrew the DIN connector and unplug the valve for service (no need to disconnect the wires from the terminals). The coils are not polarized, which mean that positive/negative does not matter when wiring them. We highly recommend using the ground terminal in the DIN connector to avoid electric shock when touching the valve.

Coil Use

The coils are designed to withstand heat build-up from continuous use as long as they are exposed to ambient and not insulated in order to dissipate heat. Although they can be used continuously without shutoff, it will reduce the life of the coil to operate them constantly. DC valves will experience more rapid heating than AC valves due to the higher amperage required to operate them. The rated maximum power consumption often only occurs when the valve operates near the maximum pressure. When no pressure is applied, the valve's power consumption is about 1/3 of the maximum power consumption.

Limitations of the Larger Valves

For the larger valves (1-1/4" and up), when operating near the maximum pressure, it can take a little longer for them to close than the smaller valves. Because of this, some applications with larger valves may also experience a "fluttering" sound as the valve tries to close against the high pressure.

Valves larger than 1" cannot hold a full vacuum. It is recommended to use the smaller valves for vacuum applications, especially if near full vacuum needs to be achieved.

Working Fluid

The working fluid can be a variety of substances. The fluid must be clean of debris for proper operation of the solenoid valve. If any debris gets into the valve body, it can clog the diaphragm from a complete seal, thus preventing a a successful closure of the valve. In the event of clogging, these valves are easy to clean. Simply remove the 4 bolts holding the body together to access the diaphragm for cleaning.

Model Numbers

Model numbers are listed below for brass, normally closed valves. If stainless steel, a J is to be added after the W. If normally open, a K is to be added before the N.
