Size:1/2 Inches
Specification:
Brand :YIDAY
Material of body: brass
Material of insert: stainless steel (plunger, spring, etc.)
Material of seal: NBR (aka Buna-N, Perbunan, and nitrile rubber)
Material of diaphragm: NBR with nylon support
Flow direction: unidirectional (follow the arrow on valve body)
Media: water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (do not use with gasoline)
Operation mode: N/C (normally closed)
Operation type: 2-way 2-position direct lift diaphragm
Pipe size: 3/4" NPSM
Voltage: 12 V DC
Water pressure: 0.02-0.8Mpa
Operating pressure differential: 3-145 psi (0.02-1 MPa)
Operating temperature: 15-125 ℉ (-10~50 ℃)
Media Temperature:15-180 ℉ (-10~80 ℃)
Feature:
Moisture-proof and anti-corrosion.
Wear-resistant and high temperature resistance.
Durable, practical and stable.
Applications: space-limited, energy-efficient, home, hobbyist etc.
Package included:

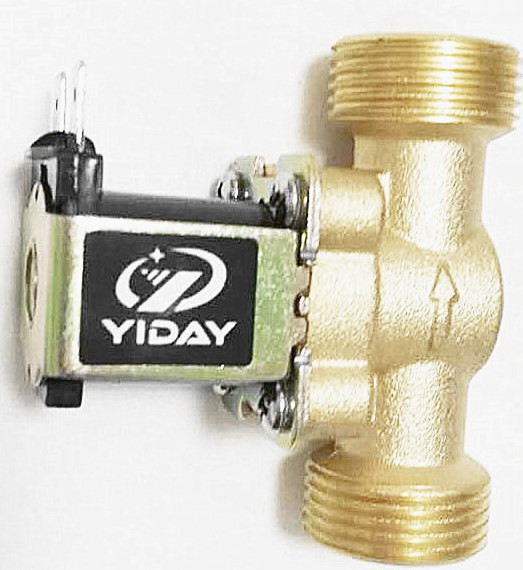

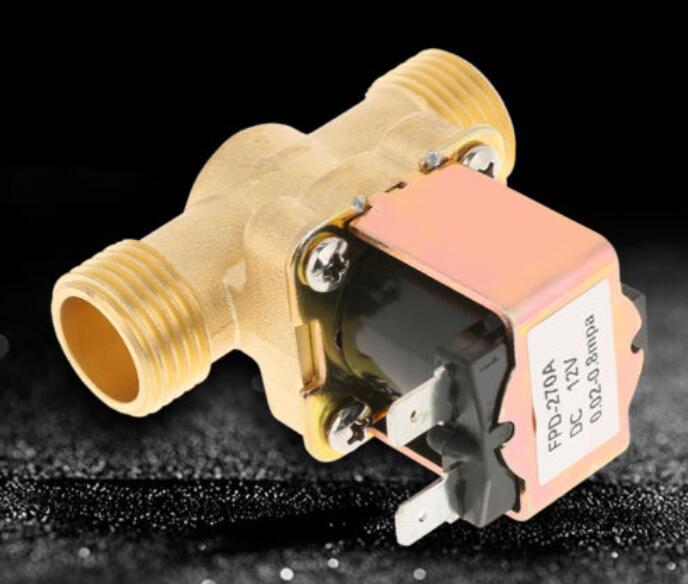

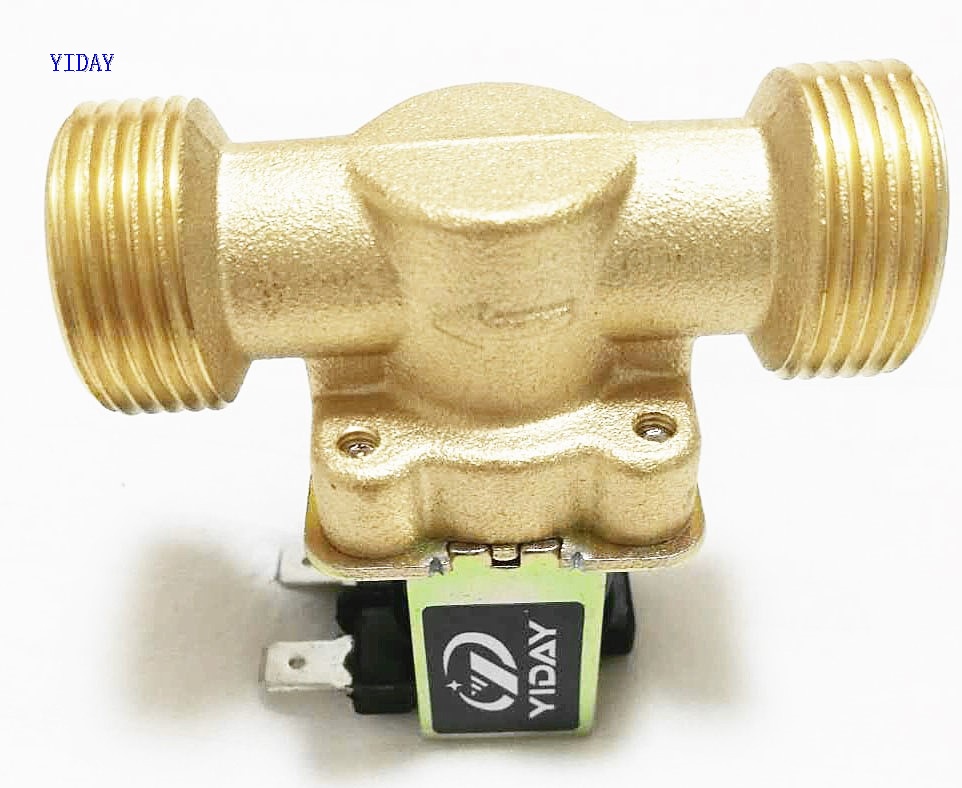

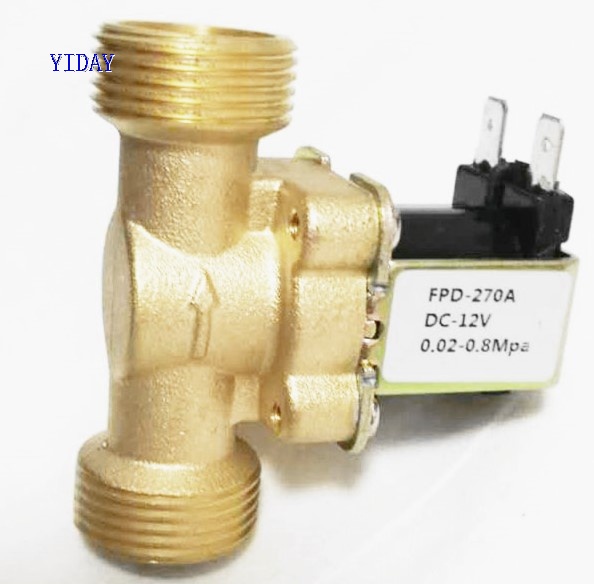

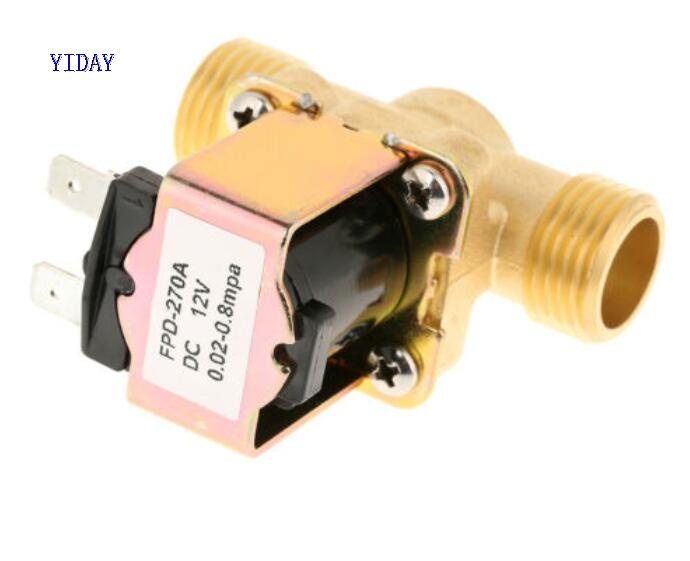

1 x solenoid valve
Note:
Please allow 1-5mm errors due to manual
measurement.
