Suzhou Yiday Electric Machinery Co.,Ltd

• 1.High temperature resistance, anti-fraying ,high efficiency, high flow,leak-tightness, low consumption
• 2. Super silent, environmental protection, aesthetics, ease of installation.
• 3. Built-in high sensitive electronic sensors with three-speed control.
• 4. Materials,Pump housing: Cast Iron;Impeller: Corrosion-resistant, Composite, PES ;Shaft: Ceramic;Bearing: Carbon axial
• 5. Rated Power:93/67/46W Inlet/Outlet:3/4''  Voltage/Frequency:115V/60HZ

Performance Data:
1.Model:RS15-6G
2.Rated Power(W):93/67/46
3.Inlet/Outlet:3/4"
4.Max Flow（l/min）:50/35/21
5.Max Head(FT):20/17/10
6.Voltage/Frequency/60HZ
7.Materials:Pump housing: Cast Iron
Impeller: Corrosion-resistant, Composite, PES
Shaft: Ceramic
Bearing: Carbon axial
8.Motor Feature:Single phase,Closed, externally ventilated
Heavy Duty Motor housing (Won't get overheat even continuous running)
Insulation class: F
Protection class: IP44

Application:
Used in Suitable for city buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating water, hot water circulating warm and so on.

Advantages:

1. High temperature resistance, anti-fraying, high efficiency, high flow,leak-tightness, low consumption
2. Super silent, environmental protection, aesthetics, ease of installation.
3. Built-in high sensitive electronic sensors with three-speed control.

Specification

• Suitable for Medium: hot water and ethanol maximum ratio of 1:1
• Performance: Liquid temperature range:0 - 110 Celsius,Maximum working pressure:10bar
• Ambient Temperature: Not higher than 40 Celsius.
• Mounting Position: Shaft horizontal mounting

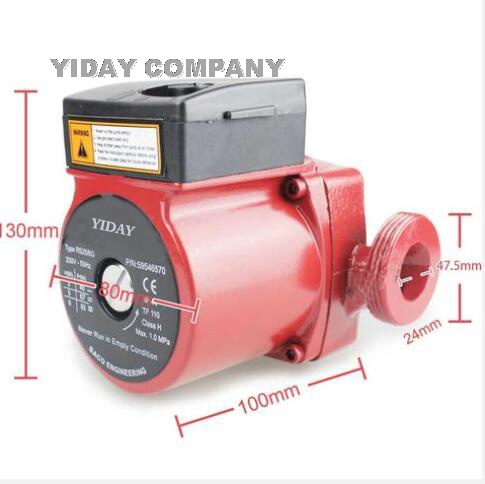

• Pump Settings: single-phase pipeline pump 3 files manually controlled single-phase motor is not overloaded casting pump length 130 mm
