Suzhou Yiday Electric Machinery Co.,Ltd

Performance Data

• Model: RS25-6
• ​Inlet/Outlet Size: 1-1/2"
• Rated Power(W): 93/ 67/ 46
• Max Flow(L/min): 53/ 35/ 21
• Max Head(FT): 20/ 16.5/ 10
• Voltage/Frequency: 230V/ 50HZ
• Materials:
• - Pump housing: Cast Iron
• - Impeller: Corrosion-resistant, Composite, PES
• - Shaft: Ceramic
• - Bearing: Carbon axial
• Motor Feature:Single phase,Closed, externally ventilated
• Heavy Duty Motor housing (Won't get overheat even continuous running)
• Insulation class: F
• Protection class: IP44
• Application: Used in Suitable for city buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating water, hot water circulating warm and so on.

Advantages
1. High temperature resistance, anti-fraying, high efficiency, high flow,leak-tightness, low consumption
2. Super silent, environmental protection, aesthetics, ease of installation.
3. Built-in high sensitive electronic sensors with three-speed control.

Specification
1. Suitable for Medium: hot water and ethanol maximum ratio of 1:1
2. Performance: Liquid temperature range:-10~+110 Celsius. Maximum working pressure: 10bar
3. Ambient Temperature: Not higher than 40 Celsius.
4. Mounting Position: Shaft horizontal mounting

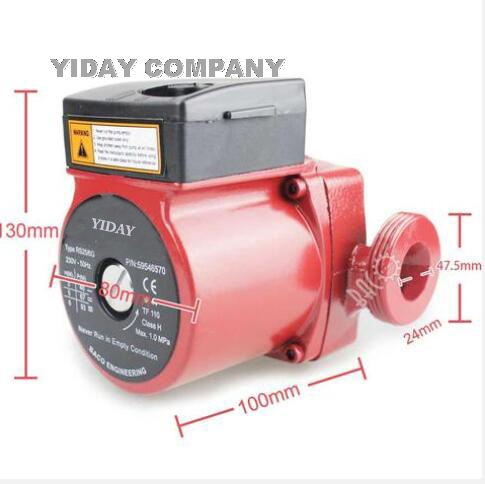

5. Pump Settings: single-phase pipeline pump 3 files manually controlled single-phase motor is not overloaded casting pump length 130 mm.
