Products > Electric ball Valve > Motorized Ball Valve > 5v 3.6v 12v 24v 110v 220v DN15 DN20 CWX-15N 2 way brass ss304 mini electric motorized water ball valve for water irrigation

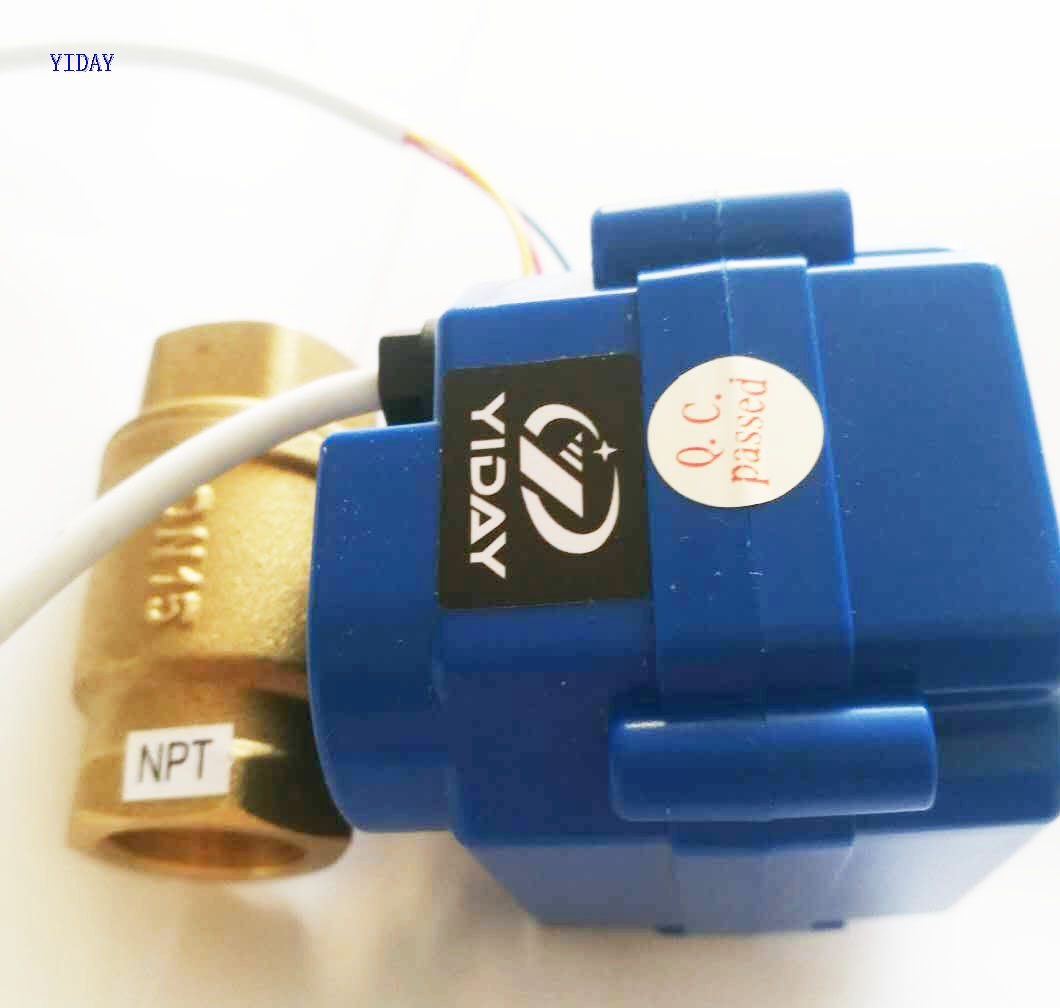

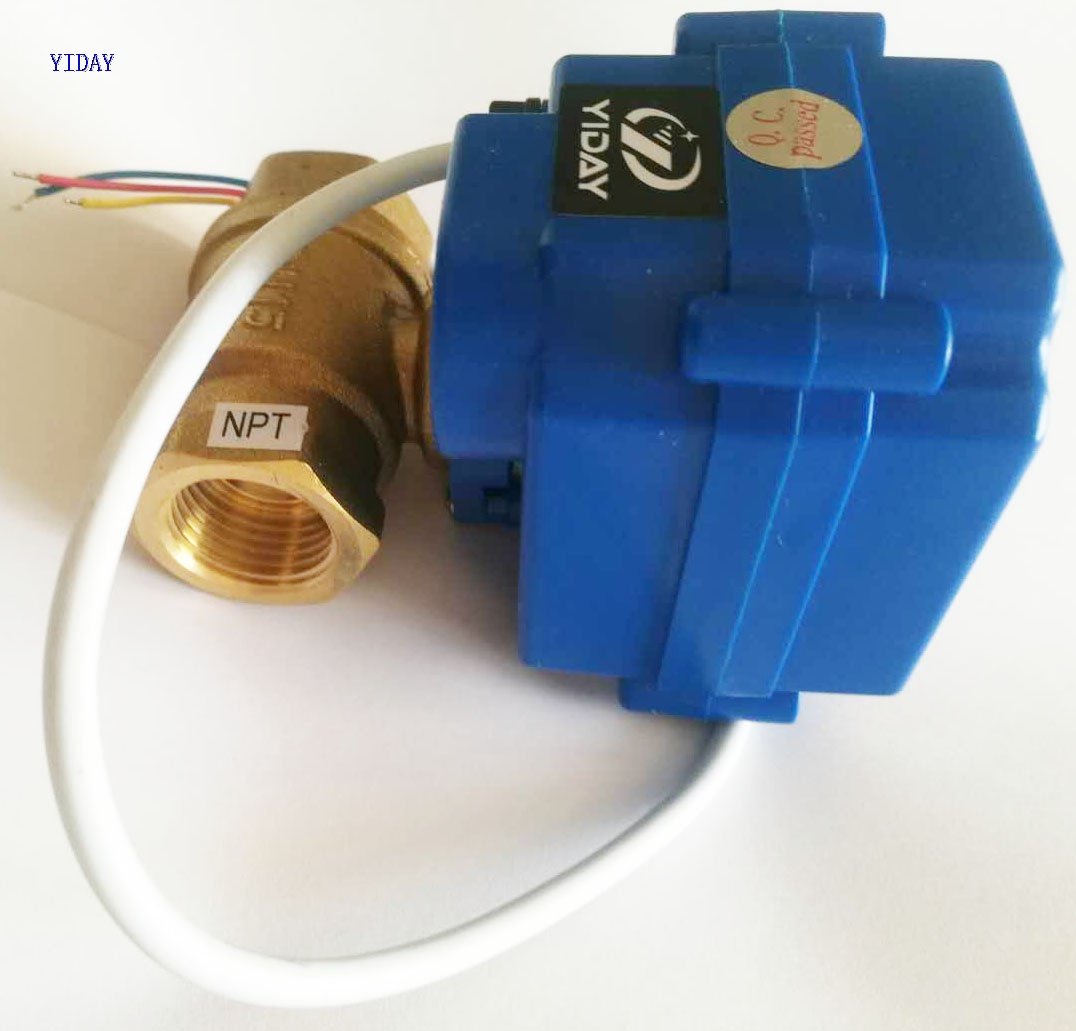

Product name : 5v 3.6v 12v 24v 110v 220v DN15 DN20 CWX-15N 2 way brass ss304 mini electric motorized water ball valve for water irrigation
Product No. : CWX-15N
valve size :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 5v 3.6v 12v 24v 110v 220v DN15 DN20 CWX-15N 2 way brass ss304 mini electric motorized water ball valve for water irrigation

  1,Metal gearbox and POM gear design, low noise, perform reliably .

   2,Long service life: more than 50000 circles.

   3,electric limit and machinery limit design, located accurately, avoid gear run continuously.

   4,Mufti-angle assembling, easy to install.

   5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
5v 3.6v 12v 24v 110v 220v DN15 DN20 CWX-15N 2 way brass ss304 mini electric motorized water ball valve for water irrigation

1.Heat energy meters, fire work, save water system.

 2.Auto control system, industrial mini auto control equipment.

 3.Water saving equipment, drinking water equipment.

 4.Air-conditioning fan coin(HVAC).
5v 3.6v 12v 24v 110v 220v DN15 DN20 CWX-15N 2 way brass ss304 mini electric motorized water ball valve for water irrigation



Product Model Rated Voltage Working current Output Torque Opening time Caliber adapter
CWX-15Q DC3.6-6V
DC12V
AC/DC9-24V
AC220V
AC85-265V

Max100mA

(CR04 except Max150mA)

Max1.5NM <3s DN8-DN20
CWX-15N  Max2.0NM <5s DN8-DN32
Working pressure Power Medium temperature Control Mode IP Grade Special function
Max1.0Mpa <3W 0-90℃ CR01   CR02 CR02+  CR03 CR03A  CR04   CR05 IP65 could customised with position indicator
