Products > Electric ball Valve > Motorized Ball Valve > 1/2" DN15mm AC110V-230V 3 Way L Port Stainless Steel Electric Valve,Motorized Ball Valve T15-S3-C,CR4-01 Wire
Product name : 1/2" DN15mm AC110V-230V 3 Way L Port Stainless Steel Electric Valve,Motorized Ball Valve T15-S3-C,CR4-01 Wire
Product No. : 2016811213417
catalogue :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

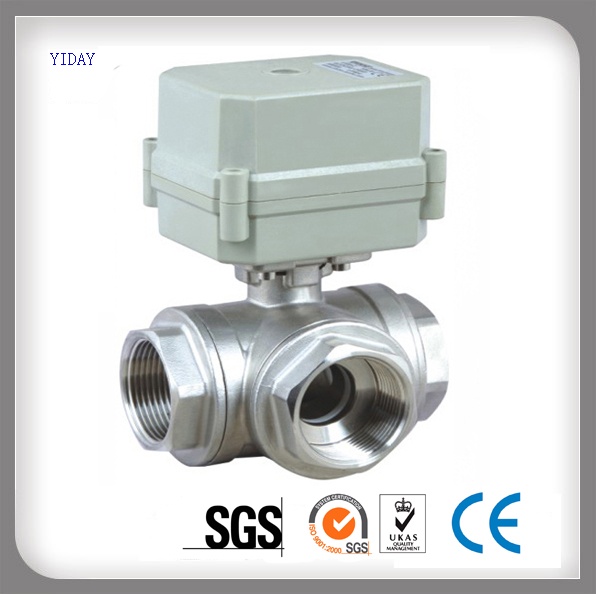

    1/2" 3 Way L port Stainless Steel Ball Valve T15-S3-C

Description:

    • Product size: NPT or BSP(Default) 1/2"

    • Maximum Working Pressure: 1.0MPa

    • Circulation Medium: Fluid, air

    • Rated Voltage: AC110V-230V

    • Wiring Control Methods:CR2-02;CR4-01

    • Working Current: 80MA

    • Open/close Time: 10-15S

    • Life time: 100000 times

    • Valve Body Material: Stainless Steel 304(CF8)

    • Actuator Material: Engineering Plastics

    • Sealing Material: EPDM & PTFE

    • Actuator Rotation: 90°

    • Max. Torque Force:  10 N.M

    • Cable Length: 0.5m

    • Environment Temperature:-15°~50°

    • Liquid Temperature: -5°~100°

    • Manual Override: NO

    • Indicator: YES

    • Protection Class: IP67
