Products > Electric ball Valve > Motorized Ball Valve > 1/2' DN15 9-24V/110v-230VBrass Electric Ball Valve, Motorized ball valve, CR2-02 with indicator

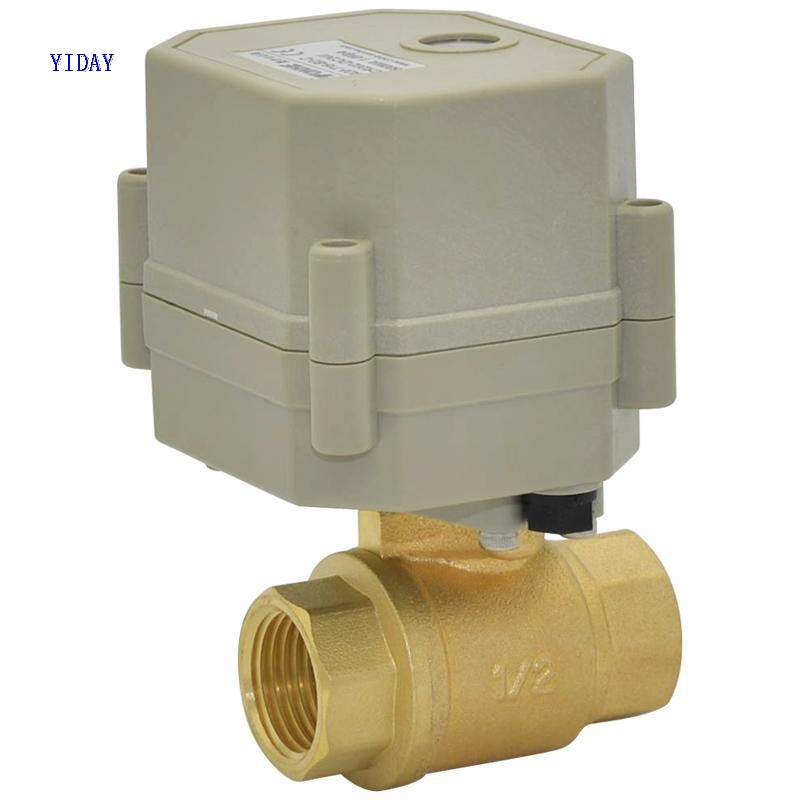

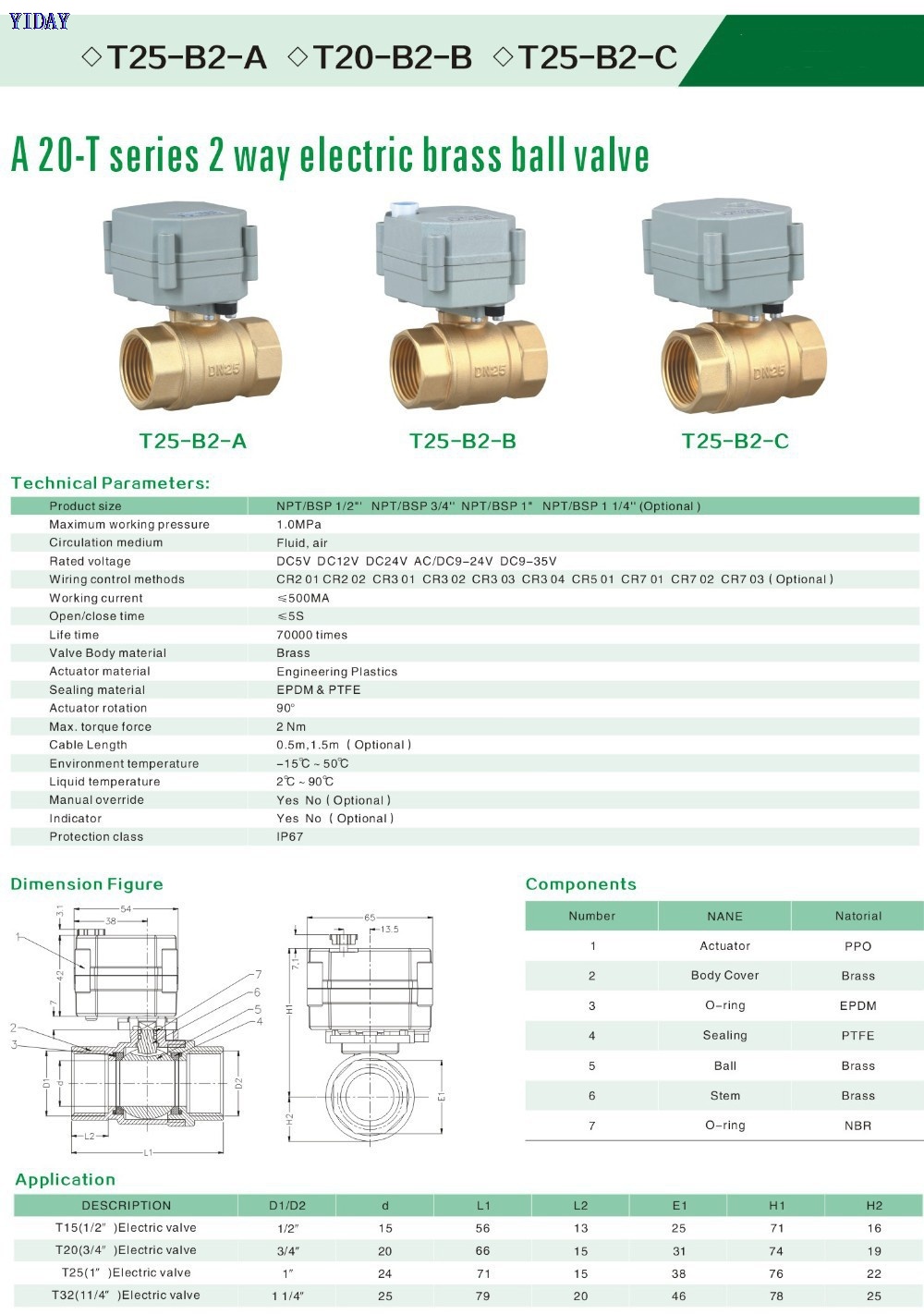

Product name : 1/2' DN15 9-24V/110v-230VBrass Electric Ball Valve, Motorized ball valve, CR2-02 with indicator
Product No. : 20161223142450
catalogue :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:


Quick Details


Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Power:
Electric
Material:
Brass
Temperature of Media:
Low Temperature
Media:
Water
Port Size:
1/2"
Place of Origin:
Jiangsu China (Mainland)
Brand Name:
YIDAY
Application:
Other
is_customized:
yes

Notice:



1).Pls tell me the Voltage and Wires you need when you place an order.(Such You need DC12V)



2).This item we need about 5~6 business day for processing

3).If you choice using Shipping The Valve Via China Post Air Mail, We can't Promise the Delivery Time.


4).If you need NPT thread, Pls tell me in advance.



Description:

    • Product size: NPT or BSP(Default) 1/2"

    • Maximum Working Pressure: 1.0MPa

    • Circulation Medium: Fluid, air

    • Rated Voltage: DC9-24V /110V-230V
    • Wiring Control Methods:CR2-02

    • Working Current: 80MA

    • Open/close Time: 3-5S

    • Life time: 100000 times

    • Valve Body Material: Brass

    • Actuator Material: Engineering Plastics

    • Sealing Material: EPDM & PTFE

    • Actuator Rotation: 90°

    • Max. Torque Force: N.M

    • Cable Length: 0.5m

    • Environment Temperature:-15°~50°

    • Liquid Temperature: -5°~100°

    • Manual Override:  NO

    • Indicator: YES

    • Protection Class: IP67
    •  Terms of sale

      Positive feedback is our life ,before you leave a neutral or negative feedback ,please contact us first to get a better solution.we care our valued customers .so if you have any problems.please contact us immediately .please give us the opportunity to solve a problem.we understand the concerns and frustrations you might have and try our best to resolve the issues ,leaving neutral or negative feedback cannot solve the problems .

       Contact us

      All communication is handled through e-mails and all message .we strive to answer all e-mails as quickly  as possible .


    • 1/2' DN15 9-24V/110v-230VBrass Electric Ball Valve, Motorized ball valve, CR2-02 with indicator

Packaging

Selling Units: Single item
Single package size:  10X10X10 cm
Single gross weight: O.5 KG
Package Type: carton

If there will be any other question,please feel free to tell me :

Ms.Eva
Email:[email protected]
