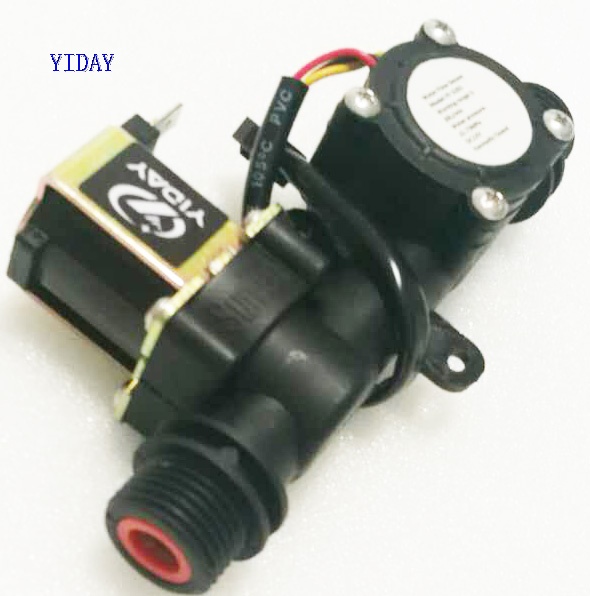

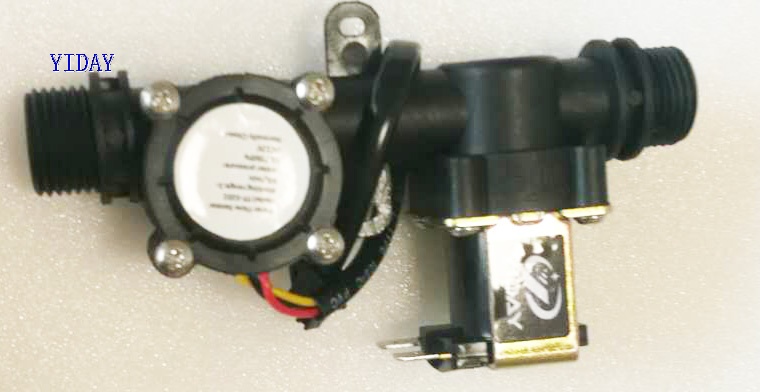

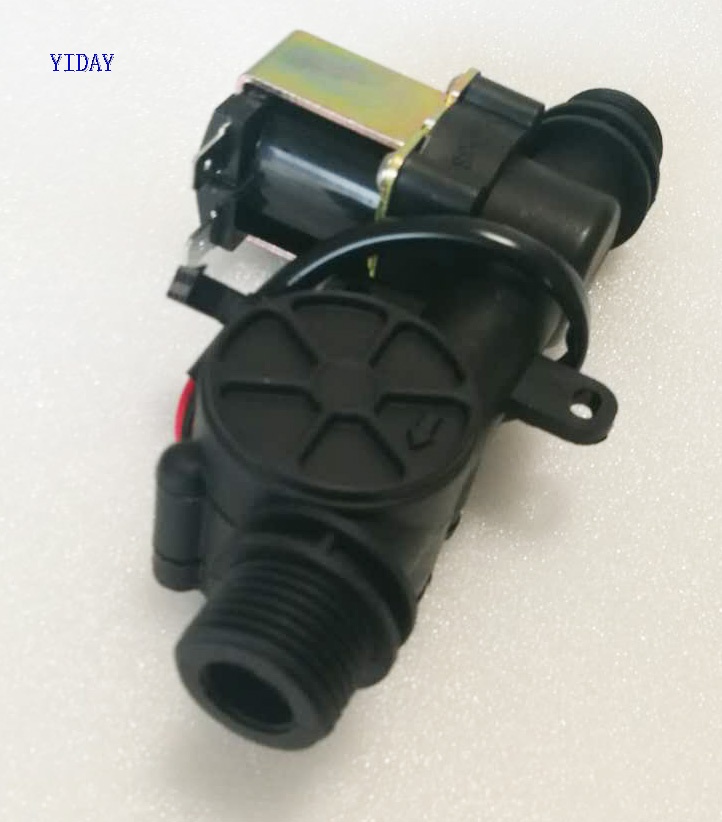

YIDAY G1/2" Water Flow Sensor+ G1/2'' Solenoid Valve Gauge
G1/2" flowmeter x 1
G1/2" solenoid valve x 1
Resistance to water pressure > 1.75 MPa
Operating voltage range DC5 ~ 15 v
Insulation resistance > 100 m Ω
precision [in 1 ~ 30L\MIN works ±10%
Flow pulse characteristic f= 10 * (Q) Q = L/Min plus or minus 3%
High output pulse level >DC 4.7v (input voltage DC 5V)
Output pulse low level V)
Output pulse duty ratio 50% plus or minus 10%



Water Flow Sensor
Meter Flowmeter Counter 1-30L/min
Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Outer diameter: about 0.79inch
Frequency: F=7.5 * Q (L / Min) error: ± 2%
voltage :3.5-24VDC, current can not exceed 10mA, 450 output pulses/liters, F=onstant * units of flow (L / min) * time (seconds)
Flow range:1-30L/min
Maximum current:15 mA(DC 5V)
Working voltage range:DC 5-24 V
Load capacity:≤10 mA(DC 5V)
Operating Temp:≤80℃,Operating
humidity:35%-90%RH
Allow compression:Water pressure 1.75 Mpa below
Insulation resistance:>100M OHM
Storage Temperature:-25-80℃
Storage humidity:25%-95%RH
Output Waveform:Square Wave,output pulse singal.
