Products > Electric ball Valve > Motorized Ball Valve > Electric PVC Ball Valve

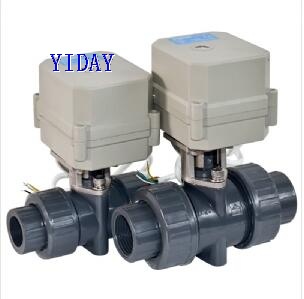

Product name : Electric PVC Ball Valve

Product No. : 201722213366

catalogue :

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

Technical Parameters:

Product size	NPT/BSP 1/2", NPT/BSP 3/4", NPT/BSP 1" (Optional)
Maximum working pressure	1.0MPa
Circulation medium	Fluid, Air
Rated voltage	DC12V, DC24, AC/DC9-35V, AC110-230V（Optional）
Wiring control methods	CR2-01, CR2-02 , CR3-03, CR4-01, CR5-01, CR5-02, CR7-03, CR7-04 (Optional)
Working current	≤ 800MA
Open/close time	≤ 15 Sec
Life time	70000 times
Valve Body material	PVC
Actuator material	Engineering Plastics
Sealing material	EPDM & PTFE
Actuator rotation	90°
Max. torque force	10 Nm
Cable Length	0.5m,1.5m （Optional）
Environment temperature	-15℃～50℃
Liquid temperature	2℃～90℃
Manual override	NO
Indicator	Yes
Protection class	IP67

Specifications:

Model	Wiring control	Working voltage	Max. torque
T20-P2-C	CR2 01	DC12V, DC24V	10Nm
T20-P2-C	CR2 02	AC/DC9-35V	10Nm
T20-P2-C	CR3 03	DC12V, DC24V	10Nm
T20-P2-C	CR4 01	AC110-230V	10Nm
T20-P2-C	CR5 01	DC12V, DC24V	10Nm
T20-P2-C	CR5 02	AC/DC12-24V	10N.M
T20-P2-C	CR7 03	DC12V, DC24V	10N.M
T20-P2-C	CR7 04	AC110-230V	10N.M

Wiring diagram

CR2 01 Wiring Diagram ( 2 wires control )

·RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position
·BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .
﹡Suitable Working Voltage: DC5V/DC12V/DC24V

﹡Exceeding the working voltage is forbidden

CR2 02 Wiring Diagram ( 2 wires control – Spring return in case of the power failure)

·When SW is closed , the valve open. the actuator automatically power off after in place

·When SW is open, the valve closed, the actuator automatically power off after in place
﹡Suitable Working Voltage: AC/DC9-35V

﹡Exceeding the working voltage is forbidden

CR3 03 Wiring Diagram (3 wires control)

·RD& GR connect with positive, the BK connect with negative。

·SW CLOSED, the valve OPEN, the actuator automatically power off after in place

·SW OPEN, the valve CLOSED, the actuator automatically power off after in place.

﹡Suitable Working Voltage: AC/DC9-35V/AC110-230V

﹡Exceeding the working voltage is forbidden

CR5 01 Wiring diagram ( with feedback signal)

1RD connect with positive, the BK connect with negative，the valve closed, the actuator automatically power off after in place .

2 BK connect with positive, the RD connect with negative，the valve open, the actuator automatically power off after in place .

3.BL & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully

Suitable Working Voltage:：DC12V,DC24V

Exceeding the working voltage is forbidden

CR502 Wiring Diagram ( 5 wires control – Spring return)

·When SW is closed , the valve open. the actuator automatically power off after in place

·When SW is open, the valve closed, the actuator automatically power off after in place BL & WT are connect when the valve open fully, YW & WT are connect when the valve cl osed fully

﹡Suitable Working Voltage: AC/DC9-24V，AC/DC110V-230V,

﹡Exceeding the working voltage is forbidden

CR7 03 Wiring Diagram ( 7 wires control with feedback signal )
