Products > Electric ball Valve > Motorized Ball Valve > CR3-01/CR5-01 DC12V/24V 2 Way Brass Motorized Ball Valve, NPT/BSP Electrical Ball Valve 1-1/4" DN32.
Product name : CR3-01/CR5-01 DC12V/24V 2 Way Brass Motorized Ball Valve, NPT/BSP Electrical Ball Valve 1-1/4" DN32.
Product No. : 2017281613
catalogue :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:


CR3-01/CR501 DC12V/24V 2 Way Brass Motorized Ball Valve, NPT/BSP Electrical Ball Valve 1-1/4" DN32



Product Description
Notice(Very Important):

1.AC110-230V and CR5-02Don't have Manual Override.

2.CR3-03 For 110-230V Also Is Auto Return When Power Off.

Product Overview:
◎ Full Bore Or Reduce Bore:  1/2"=15mm, 3/4"=20mm, 1"=25mm, 1-1/4"=29mm
◎ Limit Switch Inside, Auto Cut off Power When F.O or F.C
◎ NPT/BSP Available (Default For Buyer From US & CA is NPT, Other is BSP)
◎ Inside Gear All Made by Metal
◎ Brass Valve Body;
◎ ≤5sec Quick Action For Closed or Open Time.

Description:
◎ Maxmum Working Pressure: 145PSI
◎ Wire Diagram:
◎CR2-02: Auto Return When Power Off;
◎CR5-02: Position Feedback + Auto Return When Power Off;
◎CR3-03: Auto Return When Power Off For 110-230V
◎ Medium: Water, Gas, Oil;
◎ Voltage: DC12V/24V
◎ Working Current: Max 0.5Amps When Open;
◎ Cable Length: 0.5 Meters
◎ Medium Temperature:-5° ~ 100°
◎ Manual Override:Yes( But No For CR5-02 and 110-230V)
◎ Indicator:Yes
◎ Open and Closed Time:≤5sec

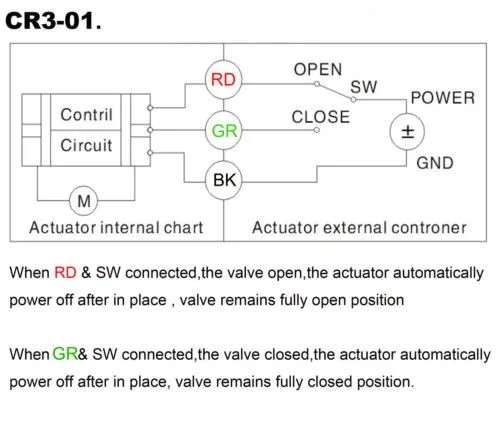

CR301

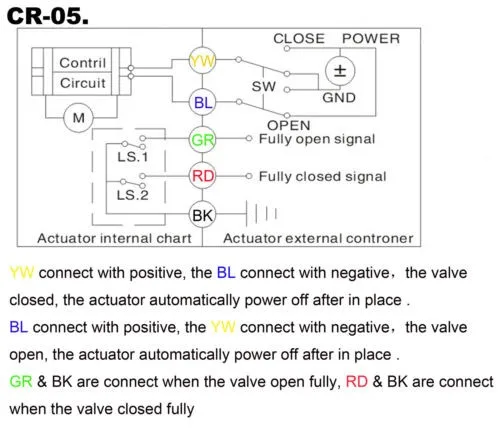

CR501
