R32, 1234YF, R410A, R134a,R-22,R-404a,R-407c, R502 Refrigerant scales and PSI/Kpa Pressure Unit Digital Manifold Gauge.
Auto air conditioner manifold gauge for R32,1234YF, R410A, R12,R22,R134a ,R404,R502 ,Refrigeration Digital Manifold Gauge

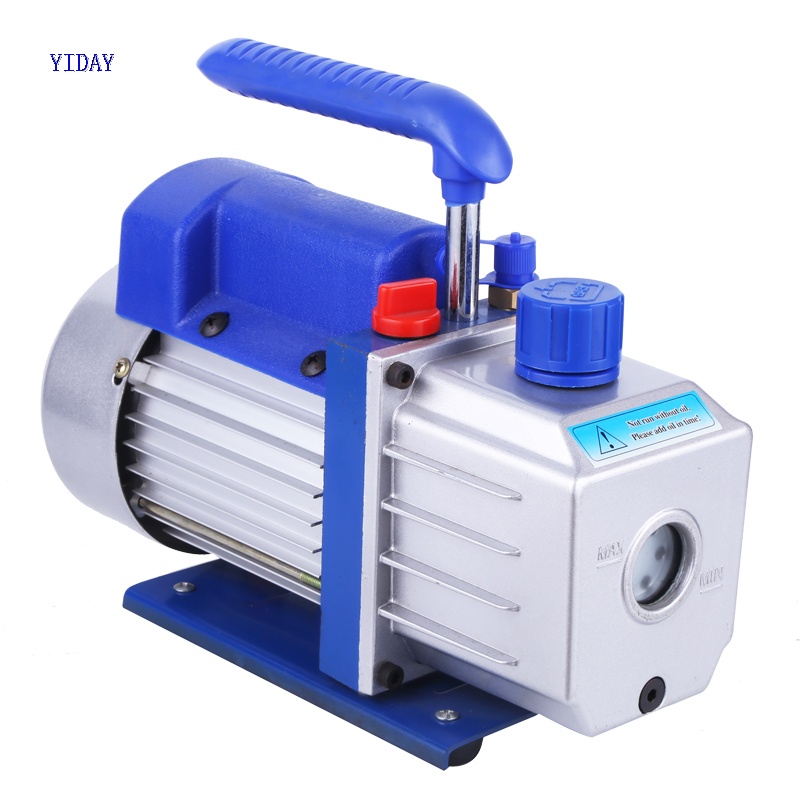

Small two stage rotary vane portable dual voltage dual frequency 100v~127v/60hz, 200v~240v/50hz 1/3hp, 4cfm vacuum pump for air conditioning and food vacuum packing.
|
|
two stage small rotary vane vacuum pump 2RS-1.5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 stage 1/3 hp 4 CFM refrigeration high volume vacuum sealer pump, 0.33hp vacuum pump Feature:
· High efficiency and low noise, heavy-duty aluminum alloy casing.
· Oil drain plug positioned at Bottom of oil tank,Large brass oil drain for easy access to fast oil changes.
Internal high volume cooling fan for extended use life,it is thermally protected.
· Exhaust port with exhaust cap, direct drive motor allowing easy starting which is maintenance free.
· Large oil sight glass for monitoring oil levels, ON/OFF switch.Wide-mouth oil reservoir port for easier, cleaner filling.
· Non slip cushion handle, the vacuum pump will be packaged with a bottle of vacuum pump oil when delivered.
· Environmental Design - The tank has been equipped with separating devices at the exhaust port to prevent oil spraying and to reduce pollution.
· Oil anti-backflow valve design: Internal intake check valve prevents oil suck back into the system during a power failure and avoid polluting the pump and pipe.
· Intake filter screen keeps damaging particles from entering the pump.
Specifications of 3.5 cfm auto vacuum pumpplug and vacuum pump intake adaptors
1.Supply to USA,Europe, Australia and all the contries in the world.
2. Available plug : Israel plug, Australia plug, South Africa plug, Europe plug, America plug, UK plug, Japan plug, Korea plug, Itialan plug, Brazil plug, and all the customized plug from different countries.
3.Professional vacuum pump intake port adaptor: 1/4" SAE; Manual check valve; 1/4" SAE 3/8"SAE double thread intake port; 1/4"SAE 1/2"ACME; 1/4" SAE 1/2"SAE; 1/4" SAE 3/8"SAE 3/4"SAE.

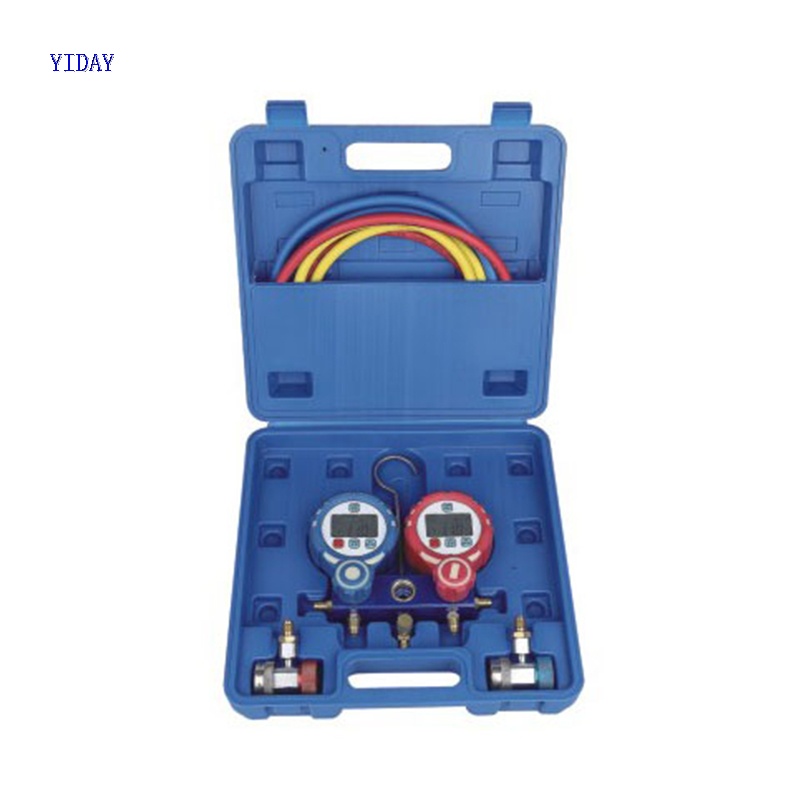

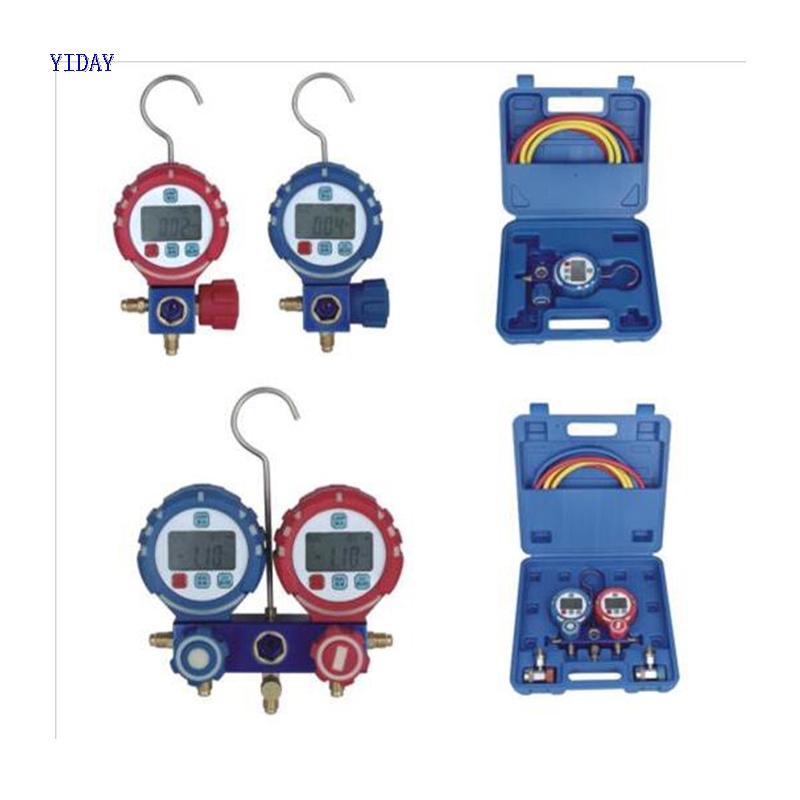

2 Ways aliuminium double gauge valve digital manifold gauge feature：
1. Digital show meter gauge, easy to read 2-1/2" gauges feature 4 PSI scales (R134a, R12, R22, R502,R410A,R32,R290,1234yf , any 4 kind of them) and Fahrenheit/Celsius scale.
2. With high durable and lightweight heavy duty aluminum manifold body
3.Built in sight glass , enable you to see if the system is in proper functioning and when will be good to change the charging tank
4. Diaphragm valves with swivel seals provide a better sealing and resists wear.
5. Flutter-free design, accurate readings, and vibration resistant gauge.
6.Convenient hang hook allows for the manifold to be hung wherever you want.
7. Heavy duty solid brass connections resists wear and last a lifetime
8. Three color coded hoses help identify the hoses more convenient.
9. Can be used for automotive or household air conditioning units,refrigerator and industrial refrigeration equipment.
Applications:
This multi-purpose digital manifold gauge set, 4 way ac manifold gauge set is perfect for maintaining R134a, R12, R22, R502,R410A,R32,R290,1234yf air conditioning systems.Use digital display gauge, easy to read and recognize. Color coded 2-1/2” gauges feature 4 different PSI scales. Color coded hoses also help identify high side, low side and the filling hose. Heavy duty manifold body features a built in sight glass so that you can see if the system is functioning properly. Widely used for automotive or household air conditioning units; Refrigerator, air conditioner and industrial refrigeration equipment.
Spec:
•Operating Pressure: 500 PSI
•Burst Pressure: 3500 PSI
•Hose Connectors: 1/4"
•ACME Adapter: 1/4" Male to 1/2" Female
•Hose Length: 5 Feet
•Compatibility: R134a, R12, R22, R502,R410A, R32,R290,1234yf , and four of them.
Includes:
•1 x Manifold Gauge
•1 x ACME Adapter
•2 x Valves
•36" x Color Coded Hoses
|
Model
|
Pressure units
|
Temp. Units
|
Vacuum units
|
Sensing accuracy
|
Resolution
|
Tube red/blue
|
Yellow tube
|
Package
|
|
NP-DMG-1
|
psi,bar,Kpa,Mpa, kg/cm2
|
℃, ℉
|
inHg
|
0.75%FS
|
1psi
|
1/4-5/6, 2*1Pc
|
1/4-1/4, 1Pc
|
Blow case
|

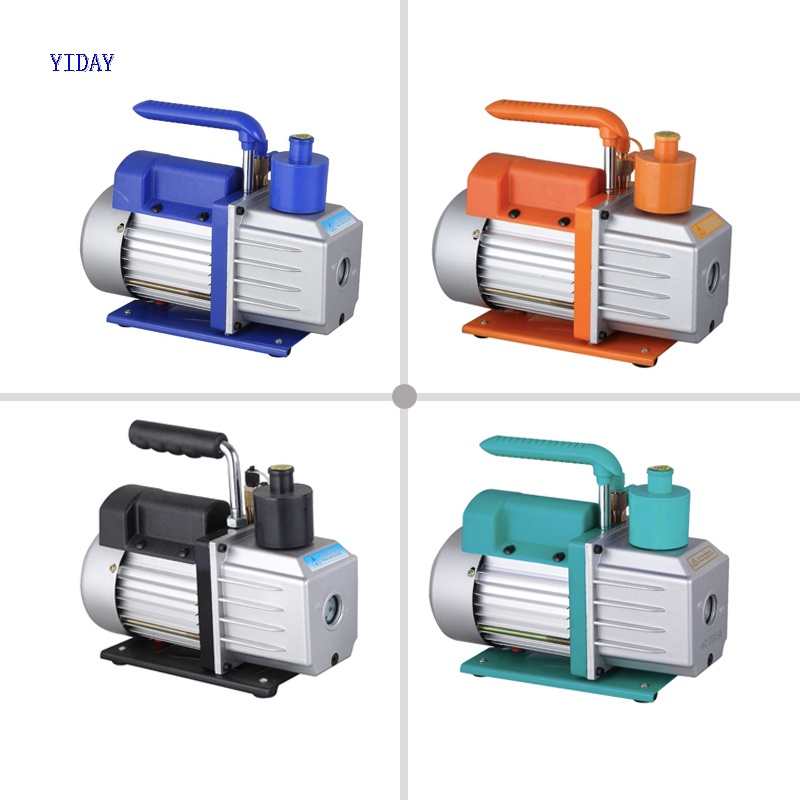

The alternable colors for vacuum pumps
|
