Products > Pump > Vaccum Pump > YIDAY hot sale 220v/60hz high volume 8 cfm 3/4 hp air conditioning vacuum pump and 5 gal vacuum degassing chamber
Product name : YIDAY hot sale 220v/60hz high volume 8 cfm 3/4 hp air conditioning vacuum pump and 5 gal vacuum degassing chamber
Product No. : 201552118638
valve size :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Product Description
model
RS-4
Voltage
110~120v/60hz
220v/50hz/60hz
Free air displacement
9cfm
8cfm
ultimate vacuum
2pa
15 micron
rotating speed (rpm)
1720
1440
Power
3/4hp
Oil Capacity
300ml
outline dimension
360 x 135x 270mm
Weight
13kg

Single stage rotary vane dual frequency 220v/50hz/60hz 8cfm refrigeration vacuum pump for central air conditioning  Feature:
· High efficiency and low noise, heavy-duty aluminum alloy casing.
· Oil drain plug positioned at Bottom of oil tank,Large brass oil drain for easy access to fast oil changes.
Internal high volume cooling fan for extended use life,it is thermally protected.
· Exhaust port with exhaust cap, direct drive motor allowing easy starting which is maintenance free.
· Large oil sight glass for monitoring oil levels, ON/OFF switch.Wide-mouth oil reservoir port for easier, cleaner filling.
· Non slip cushion handle, the vacuum pump will be packaged with a bottle of vacuum pump oil when delivered.
· Environmental Design - The tank has been equipped with separating devices at the exhaust port to prevent oil spraying and to reduce pollution.
· Oil anti-backflow valve design: Internal intake check valve prevents oil suck back into the system during a power failure and avoid polluting the pump and pipe.
· Intake filter screen keeps damaging particles from entering the pump.




Specification of the vacuum pump plug and vacuum pump intake connectors:

1.Supply to USA,Europe, Australia and all the contries in the world.
2. Available plug : Israel plug, Australia plug, South Africa plug, Europe plug, America plug, UK plug, Japan plug, Korea plug, Itialan plug, Brazil plug, and all the customized plug from different countries.
3.Professional vacuum pump intake port adaptor: 1/4" SAE;  Manual check valve;  1/4" SAE 3/8"SAE double thread  intake port;  1/4"SAE 1/2"ACME; 1/4" SAE 1/2"SAE; 1/4" SAE 3/8"SAE 3/4"SAE.

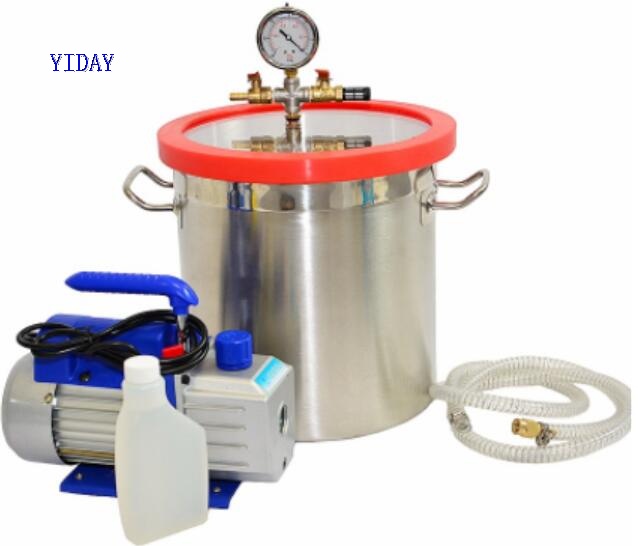

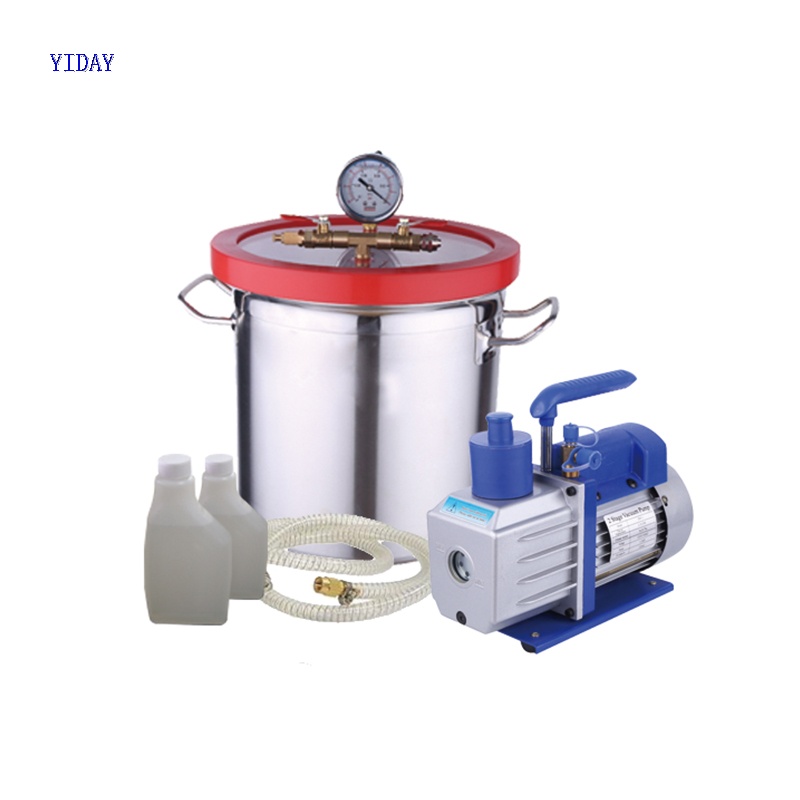

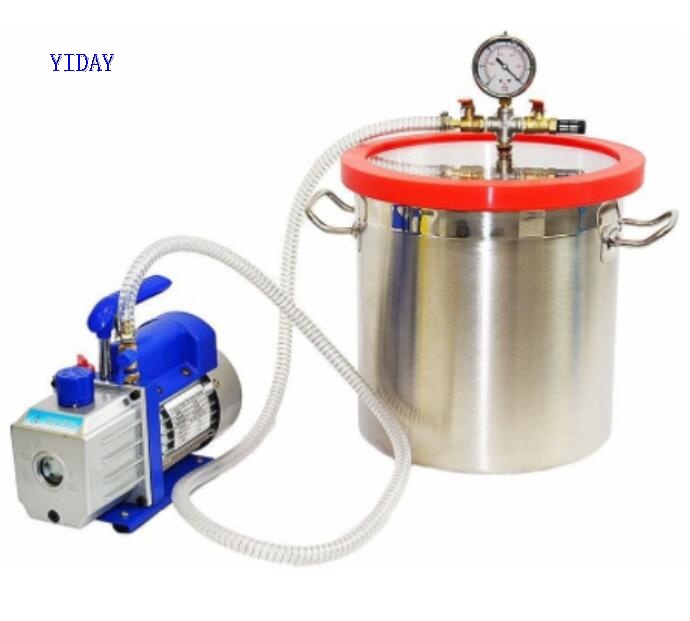

5 gallon silicone  vacuum degassing chamber sealer feature:
1.High efficiency & low noise.
2.Vibration-resistant gauge guarantees high accuracy.
3.Both the inlet and outlet valve are designed as single unit for easy operation
4.Stainless steel material chamber is of high strength and durable.
5.The air filter prevents air flowing back to the chamber and contaminate the resin
6.The transparent lid allows to observe the process of degassing.
7.Silicon sealing ring have advantages of excellent air tightness, high vacuum degree, long service life, high temperature resistance, waterproof and good insulation.




Applications:
 The silicone degassing vacuum chamber is to make the raw material to remove the bubble or defoaming faster , the stirring and mixing of the materials are more uniform and tight while vacuuming. Such as resin, paint, ink, pigment, PVC raw materials, silica gel, battery colloid, adhesive, dispersant, gypsum, red glue, silica gel etc.
vacuum chamber Applied for removing air bubbles mixed in epoxy resin, silicone rubbers and slower setting resins.
vacuum chamber Model
HBS-T5
Capacity
20L
Capacity
5 gallon
 spec.
30 (H) x 30 (D) CM
package dimension
37 (L) x 38(W)  x 38 (H) CM


Detailed Images

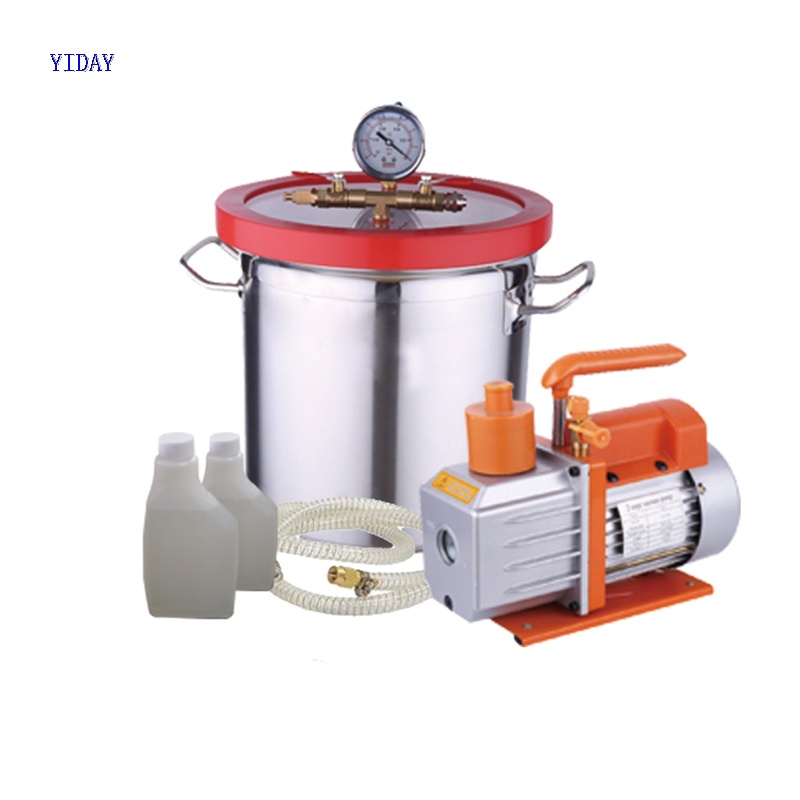

The alternable colors for vacuum pumps

Other Products

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons with company logo . If you have special requirement and trade mark,
we can pack the goods in your branded boxes after getting your authorization letters or as per your other requirement.

Q2. What is your terms of payment?
A: T/T, L/C,Western Union, Paypal;

 T/T40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
