vacuum chamber for degassing and unfoaming 3 gallon.

Quick Detail:

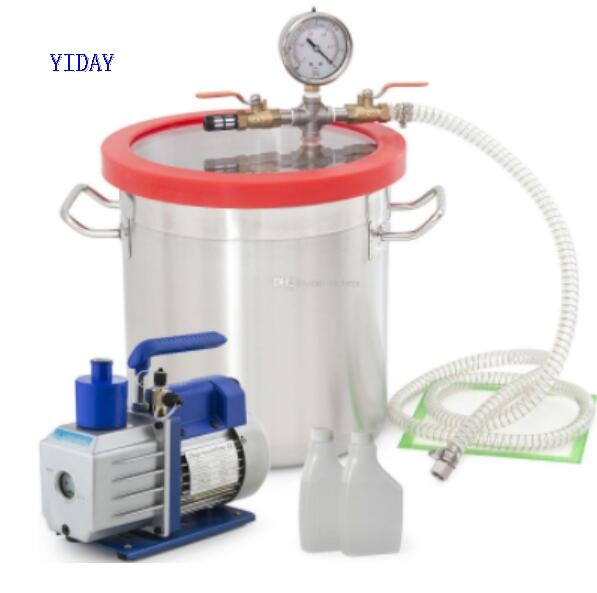

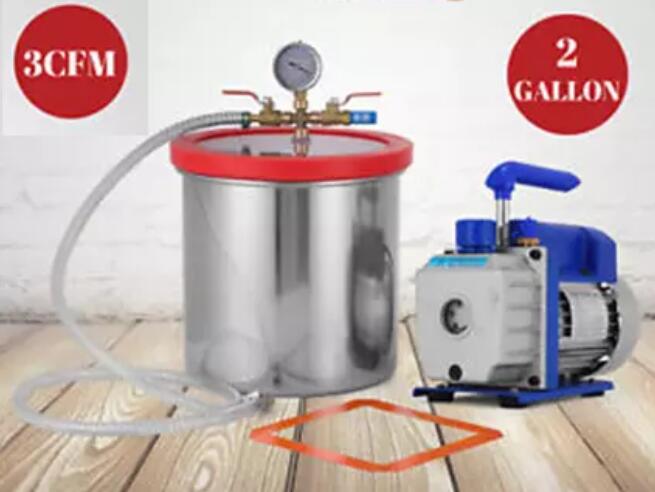

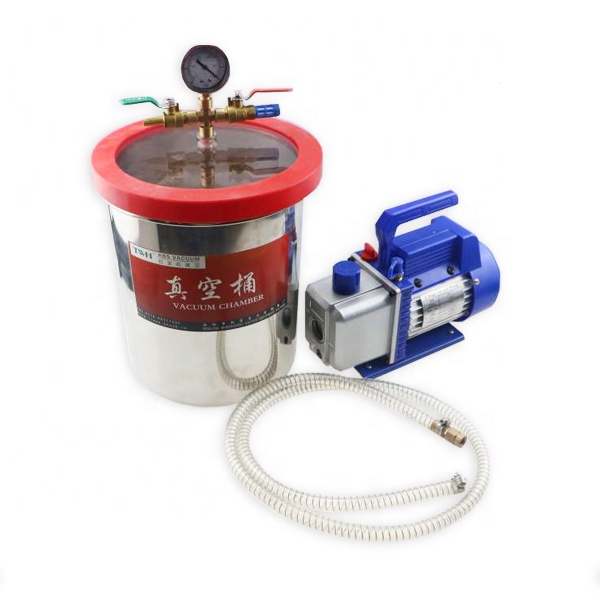

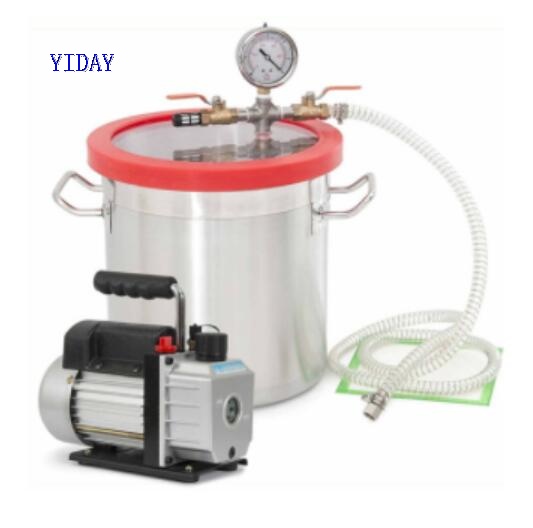

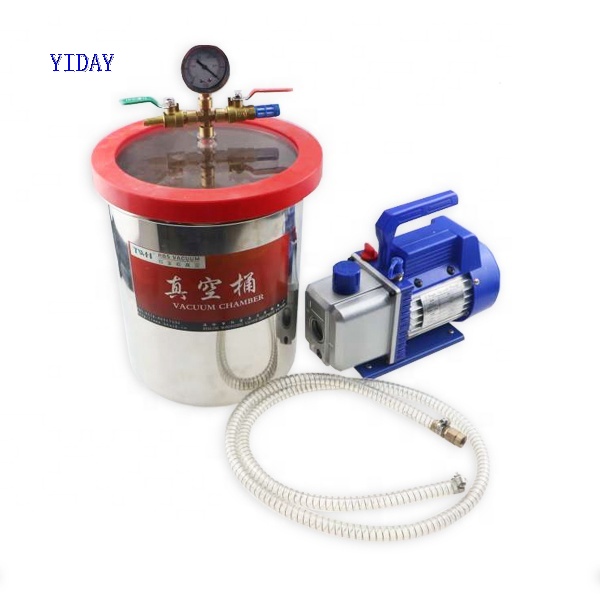

This vacuum tank is made of stainless steel with capacity of 8L, 2.1 gal in US. It is perfect for reducing gas bubbles that would probably weaken the epoxy and silicone. And its large sight window applies 18mm distortion-free organic glass which will not hurt hands compared with reinforced glass. We also supply vacuum chamber kit which contains vacuum pump and chamber.

Description:

l   Little and tiny look.

l   Stainless steel material

l   Silicone oil sealing ring ensures excellent air tightness, high vacuum degree and long service life.

l   Thickening material. High security and strength

l   Anti-vibration vacuum gauge (with oil in the gauge) : shockproof, before vacuum, unplugged

l   will make the data more accurate.

l   Inlet valve and drain valve: the inlet valve is a pipe and the vent valve has a silencer (which is adjusted to a moderate, if too fast, the watch is very easy to break.)

l   Glass cover: 18mm organic glass, super - perspective, will not deform, will not be as easy to cut as copper glass

l   Silica gel sealing ring: high gas seal, high vacuum degree, long life, high temperature resistance, water proof, absolute, insulation characteristics

l   Super thick chamber: super thick material, high security (resistance to pressure, never deformation

l   Silicone defoaming pad: defoaming, purifying effect

Available for vacuum pump of 1L, 2L, 4L.

Volume: diameter:200mm, height:200mm.

diameter:250mm, height:250mm.

diameter:280mm, height:280mm.

Maintenance

l   Check the vacuum gauge all the time to ensure that the vacuum chamber works well.

l   The pipe need to be cleaned after use.

l   Regular clean should be done to lid to remove grease and dust.

Precautions

l   Do not select vacuum chamber just according to the size of mould. Due to the liquid expansion, the epoxy rasin would overflow from the crack.

l   Don’t release gas too fast so as not to damage the valve.

Applications:

The vacuum chamber is to make the raw material to remove the bubble or defoaming faster , the stirring and mixing of the materials are more uniform and tight while vacuuming. Such as resin, paint, ink, pigment, PVC raw materials, silica gel, battery colloid, adhesive, dispersant, gypsum, red glue, silica gel etc. The vacuum chamber can make the vacuum more purge and have no bubble or gas in the chamber or inside the materials.

Applied for removing air bubbles mixed in epoxy resin, silicone rubbers and slower setting resins.

Specifications:

Other dimensions can be customized according to customer requirements.

Ps:

1.      The vacuum pump is optional.

2.       Unit switches:

1gallon(USA)=3.785412 L

1 gallon(UK)=4.54609188 L

8L=2.1 us gal=1.76 uk gal

12L=3.17 us gal=2.64 uk gal

20L=5.28 us gal=4.40 uk gal

24L=6.34 us gal=5.28 uk gal

Characteristics of Vacuum Pumps

1. Anti-backflow oil design

The inlet channel is specially designed to prevent pump oil backflow and pollute the pipeline after stop pumping.

2. Environmental design

The oil tank is separated by layer, and the oil and gas separation device is set up on the exhaust port, without spray oil and oil mist pollution.

3. Aluminum motor casing

Vacuum pump motor is made of aluminum alloy shell with high efficiency of heat dissipation. It is guaranteed to operate continuously for a long time and has a good appearance quality.

4. Integrated design

The pump adopts the integrated design to make the product more compact , lightweight and reasonable.

5. Big start torque

This product is specially designed for low temperature environment, so as to ensure the normal start of the winter environment

Use anti-shock rubber foot to reduce vibration and noise.

Vacuum purging chamber features:

1. Small and delicate look

2. All stainless steel materials

3. Oversize Windows, all specifications are made of 18mm of organic glass, absolutely not deformed, and will not be as easy to cut off as toughened glass.

4. Silicone sealing ring, high air tightness, high vacuum degree, longer life.

5. Super thick material, high security (resistant to pressure, never deformation)

6. Shock resistance vacuum gauge (oil in vacuum gauge).

Applications:

RS series oil sealed vacuum pumps are widely applicable to vacuum packaging , vacuum freezing, automobile reparation, maintenance,gas analysis, medicine mechanism, printing mechanism air conditioner ,HVAC tools, refrigeration ,and other vacuum evacuations.

The vacuum degassing chamber is applied for removing air bubbles mixed in epoxy resin, silicone rubbers and slower setting resins or defoaming and degassing to purge the raw materials.

Note:

Some people use large dies, so they want to buy a big chamber, this idea is wrong.Because the resin, AB glue, and then you put it in the chamber for degassing.The liquid expands and will flow out from the cracks in the molds until all the liquid flows out.  When the pressure is unloaded and there will be no liquid left in it.

So choosing the right dimension is important.
