Technical Parameters:
| Valve size |
thread (NPT/BSP) 1“ DN25 F03 |
| Connection standard |
ISO5211 F03、F05 |
| Output axis specification |
Female octagonal 9*9 or 11*11 |
| Torque force |
15NM |
| Circulation medium |
Fluid, air |
| Rated voltage |
DC12V DC24V AC110-230V (Optional ) |
| Wiring control methods |
CR201 CR202 CR301 CR303 CR306 CR501 CR502 CR702 CR703 CR706（Optional） |
| Working current |
≤1.5A |
| Open/close time |
≤10S |
| Life time |
50000 times |
| Valve Body material |
SS304 |
| Actuator material |
Engineering Plastics |
| Sealing material |
EPDM & PTFE |
| Actuator rotation |
90° |
| Max. torque force |
10Nm |
| Cable Length |
0.5m,1.5m（Optional） |
| Environment temperature |
-15℃～50℃ |
| Liquid temperature |
0℃～120℃ |
| Manual override |
Yes |
| Indicator |
Yes |
| Protection class |
IP67 |

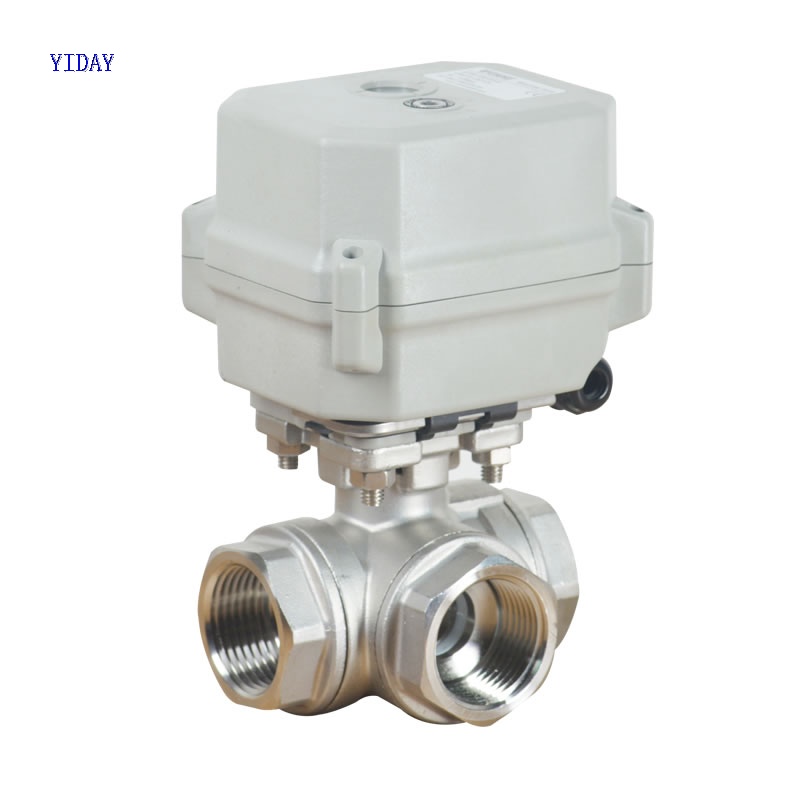

A150 actuator with manual override
Design Features
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance.
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, Water pressure
5, actuator cable length 0.5m or 1.5m?
6,flow direction?
Wiring diagram
CR201 Wiring Diagram ( 2 wires control )
·RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position .
·BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .
﹡Suitable Working Voltage: DC12V/DC24V
﹡Exceeding the working voltage is forbidden
CR202 Wiring Diagram ( 2 wires control –power off valve close itself)
·When SW is closed , the valve open. the actuator automatically power off after in place
·When SW is open, the valve closed, the actuator automatically power off after in place
﹡Suitable Working Voltage: DC12-24V，AC110V-230V
﹡Exceeding the working voltage is forbidden
Please Note A150 CR202 must need charge time >1 minute for every time use
CR301 Wiring Diagram (3 wires control )
·RD & GR connect with positive, BK connect with negative
·When OPEN( RD) & SW connected , the valve open, the actuator automatically power off after in place , valve remains fully open position
·When CLOSE(GR) & SW connected, the valve closed, the actuator automatically power off after in place, valve remains fully closed position.
﹡Suitable Working Voltage:DC12V, DC24V,AC24v,DC12v-24v
﹡Exceeding the working voltage is forbidden
CR303 Wiring Diagram (3 wires control)
·RD& GR connect with positive, the BK connect with negative
·SW CLOSED, the valve OPEN, the actuator automatically power off after in place
·SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
﹡Suitable Working Voltage: DC12V, DC24V,AC24v,DC12-24v, AC110-230v
﹡Exceeding the working voltage is forbidden
CR306 Wiring Diagram ( 3 wires control – power off valve close itself)
1)Power off(failure), valve close
·RD& GR connect with positive, the BK connect with negative
·SW CLOSED, the valve close, the actuator automatically power off after in place
·SW OPEN, the valve open, the actuator automatically power off after in place.
Power off, valve close itself.
2)Power off(failure), valve open
·RD& GR connect with positive, the BK connect with negative
·SW CLOSED, the valve open, the actuator automatically power off after in place
·SW OPEN, the valve close, the actuator automatically power off after in place.
Power off, valve open itself.
﹡Suitable Working Voltage: AC24V，DC12V-24V,AC110-230v
﹡Exceeding the working voltage is forbidden
CR501 Wiring diagram ( with feedback signal)
1.RD connect with positive, the BK connect with negative，the valve closed, the actuator automatically power off after in place .
2 BK connect with positive, the RD connect with negative，the valve open, the actuator automatically power off after in place .
4. GR & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully
Suitable Working Voltage：DC12V, DC24V
Exceeding the working voltage is forbidden
Feedback wire capacity:
1. Voltage: DC0-35v; 2. Maximum current: 0.4A
CR502 Wiring diagram ( with feedback signal,power off valve close itself)
·When SW is closed , the valve open. the actuator automatically power off after in place
·When SW is open, the valve closed, the actuator automatically power off after in place
﹡GR & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully
﹡Suitable Working Voltage: AC24V，DC12-24V, AC110-230v
﹡Exceeding the working voltage is forbidden
Feedback wire capacity:
1. Voltage: DC0-35v; 2. Maximum current: 0.4A
Please Note A150 CR202 must need charge time >1 minute for every time use
CR702 Wiring Diagram ( 7 wires control with feedback signal )
1.RD & GR connect with positive, the BK connect with negative
2. When RD & SW connected, the valve open, the actuator automatically power off after the valve fully open.
3. When GR & SW connected, the valve closed, the actuator automatically power off after the valve fully closed,.
4. BL & GY connect with the valve’s fully open signal wiring
5. YW & WT connect with the valve’s fully closed signal wiring
﹡Suitable Working Voltage: DC12V, DC24V,AC24v,DC12v-24v
﹡Exceeding the working voltage is forbidden
Feedback wire capacity:
1. Voltage: DC0-35v; 2. Maximum current: 0.4A
CR703 Wiring Diagram ( 7 wires control with feedback signal )
·RD& GR connect with positive, the BK connect with negative。
·SW CLOSED, the valve OPEN, the actuator automatically power off after in place
·SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
·BL & GY connect with the valve’s fully open signal wiring
·YW & WT connect with the valve’s fully closed signal wiring.
﹡Suitable Working Voltage: DC12V, DC24V,AC24V,DC12-24V,AC110-230v
﹡Exceeding the working voltage is forbidden
Feedback wire capacity:
1. maximum voltage DC36V, AC220V; 2. maximum current 0.4 A.
CR706 Wiring Diagram ( 7 wires control with feedback signal,power off valve close itself)
1)Power off(failure), valve close
·RD& GR connect with positive, the BK connect with negative
·SW CLOSED, the valve close, the actuator automatically power off after in place
·SW OPEN, the valve open, the actuator automatically power off after in place.
Power off, valve close itself.
2)Power off(failure), valve open
·RD& GR connect with positive, the BK connect with negative
·SW CLOSED, the valve open, the actuator automatically power off after in place
·SW OPEN, the valve close, the actuator automatically power off after in place.
Power off, valve open itself.
·BL & GY connect with the valve’s fully open signal wiring
·YW & WT connect with the valve’s fully closed signal wiring.
﹡Suitable Working Voltage: AC24V，DC12V-24V,AC110-230v
﹡Exceeding the working voltage is forbidden
